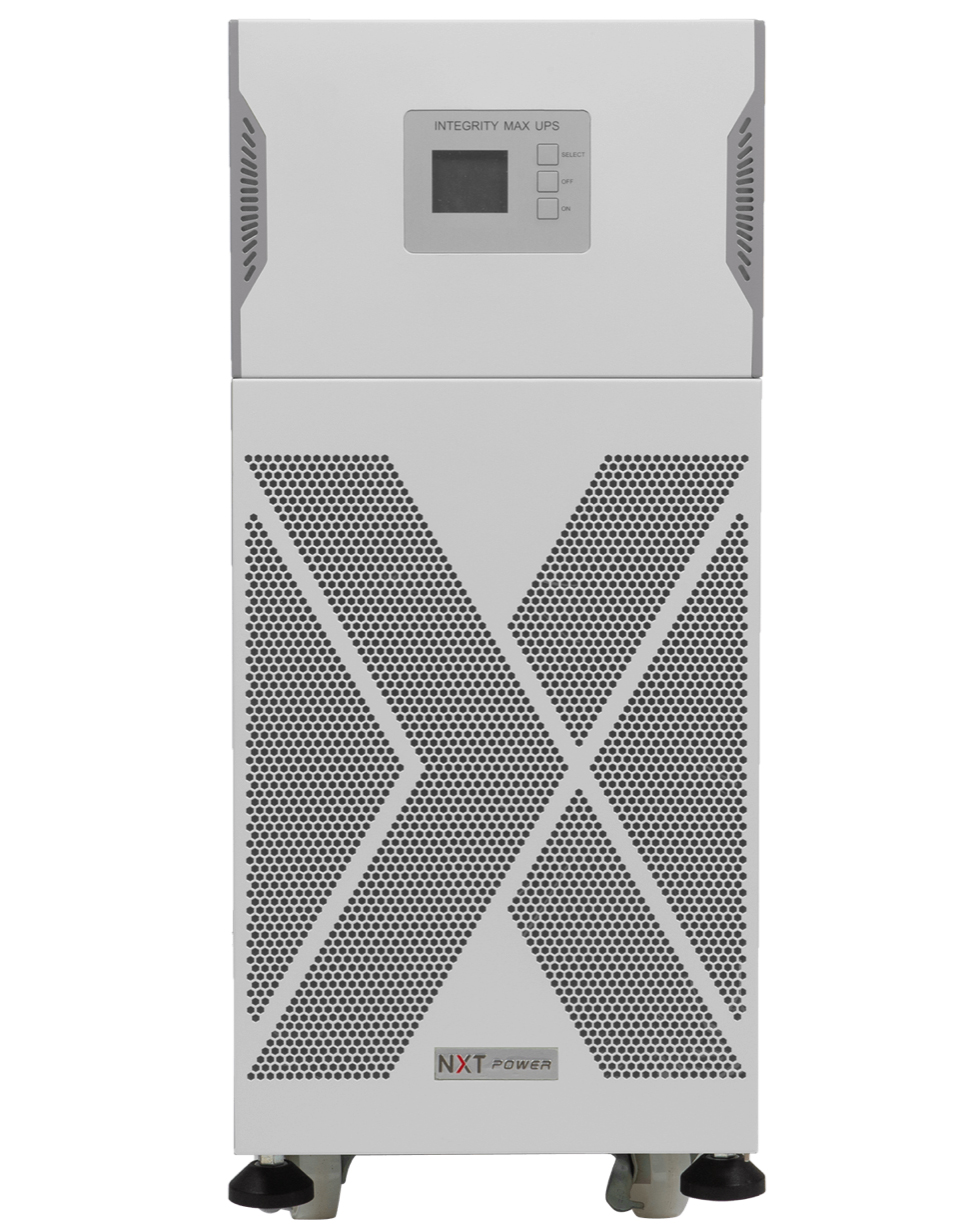

Integrity Max UPS SYSTEM is a UL-approved system that uses a surge diverter, low impedance isolation transformer, and noise filtering to optimize performance.
With its DSP controlled inverter, the Integrity Max UPS provides constant voltage and frequency to the load, no matter how poor the incoming power quality. “The DSP controlled double-conversion inverter takes the incoming poor-quality AC power, converts it to DC, and then regenerates into a high-quality low distortion AC sinewave,” describes Director of Engineering Cherian Jose. “And, if we stopped our design process at this point, this product would match most existing UPS systems,” adds Jose, “however, our Engineering Team went steps further to engineer the superior Integrity Max UPS.”
According to Jose, the NXT Power Integrity Max UPS was designed to pass the regenerated AC output through an isolation transformer and then through a secondary filter. Currently, no other product in the marketplace offers this transformation. Secondly, the Integrity Max UPS utilizes an output filter and isolation transformer to limit the let-through voltage to less than 10 volts normal mode and less than 0.5 volts neutral-toground when tested to ANSI/IEEE C62.41 in all modes of operation.
When we added these two additional assets, the Integrity Max UPS insures the MAXimum level of power conditioning to the equipment.” Additional benefits of the Integrity Max UPS design include utilization of a 2-pole mechanical relay to fully isolate the input terminals from potentially hazardous back feed voltage from the inverter while operating in backup mode. This ultimately protects equipment and personnel from any electrical shock. Also, all units have fully customizable power distribution panels to accommodate most application requirements; all customized panels are created and programmed on-site at NXT Power.
“Already we are enthused by all the attention being generated around the Integrity Max UPS system and have significant plans for the many products under development in the 2021 Integrity Series,” adds Gornick. All NXT Power Integrity Max UPS products carry an industry leading warranty with three [3] years on both the electronics and batteries. Every product meets and/or exceeds all UL requirements under the listing UL 1778 5th Edition Standard for Safety.
