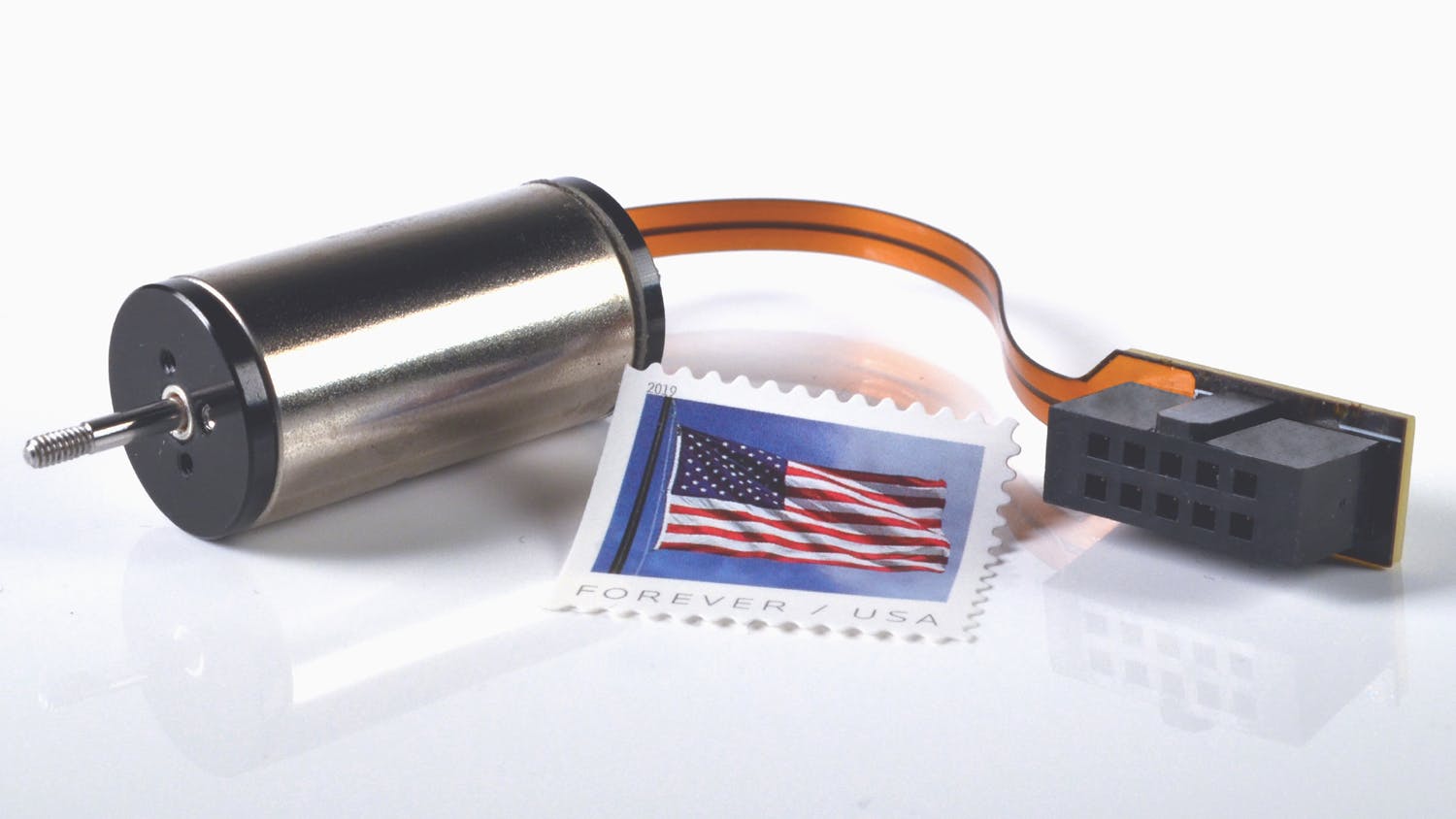

The SDLM-016-032-01-01-M (Metric) Direct Drive Linear Motor with an integrated encoder and temperature sensor has been added to Moticont's SDLM Series of Metric and Imperial dimensioned high precision linear actuators.
Smallest of the series of linear motors, it features zero backlash, zero cogging, high acceleration, high speed, high resolution, and long life. Also known as an electric cylinder, this compact direct-drive linear motor is 0.625 in (15.9 mm) in diameter and 1.25 in (31.8 mm) long.
Protected inside the motor housing, a 1.25-µm resolution linear quadrature encoder directly connected to the shaft provides the greatest possible accuracy with zero backlash. Additionally, monitoring the temperature from the internal temperature sensor optimizes the highest possible throughput.
This motor has a stroke length of 0.25 in (6.35 mm), a continuous force rating of 1.14 N (4.1 oz), a peak force of 3.61 N (13.0 oz), and 1.08 N/A (3.9 oz/A) force constant. This non-commutated, low inertia, direct drive servo motor has a quiet long life, plain linear bearings, and connections are easily made via a flex cable terminated in a 10-pin female connector.
These are ideal for medical devices (e.g. infusion pumps, prosthetic devices, and surgical robots), automotive and consumer products, aerospace (e.g. aircraft, drones, satellites, and rockets), robotics and industrial automation, and laboratory applications (e.g. microscope stages, pipetting, and sampling).
Direct coupling of the load or stage to a non-rotating shaft eliminates backlash and allows for smooth motion. Both ends of the actuator have M1.6X0.35, 0.10 deep threaded mounting holes for easy integration into new and existing applications. Each end of the 0.07 in (2 mm) diameter shaft has an M2X0.4 male thread with a length of 0.13 in (3.2 mm).
The SDLM-016-032-01-01-M Direct Drive Linear Actuator is also available with a matching servo controller.
Moticont
Van Nuys, CA
Local: (818) 785-1800
Toll free: (888) 785-1804
[email protected]
moticont.com
