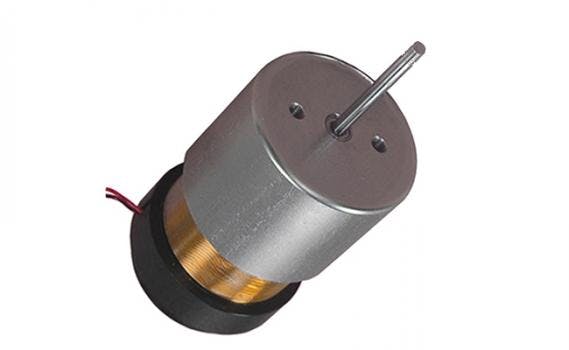

GVCM-016-019-01M Linear Voice Coil Servo Motor

Aug. 31, 2022
Moticont's GVCM-016-019-01M Linear Voice Coil Servo Motor offers high force-to-size ratio.

The miniature GVCM-016-019-01M Linear Voice Coil Servo Motor is 0.625 in. (15.9 mm) in diameter. It features a high force-to-size ratio of 5.3 oz (1.5 N) continuous force and 16.6 oz (4.6 N) of peak force. The compact housing is just 0.63 in. (19.1 mm) long, and in the fully extended position, the shaft extends 0.79 in. (20 mm) beyond the face of the housing. The end of the shaft has an M2.2X0.45 thread by 4 mm long for backlash free connections.



Non-commutated, these brushless miniature linear servo motors are clean, quiet, and feature high acceleration/deceleration, high speed, high reliability, cog free linear motion, and improved reliability. They are ideal for haptic feedback and pipetting in medical devices, laser, machining and drilling, work holding and clamping, scanners and laser beam steering and filtering, optical focusing, dynamic vibration absorption, testing, sorting, and assembly.



The housing and coil end of the GVCM-016-019-01M has 2 M2.2X0.45 threaded mounting holes on 6.4 mm centers for easy integration into new and existing applications.

  • Stroke: 0.5 in. (12.7 mm)
  • Continuous force: 5.3 oz (1.5 N)
  • Intermittent force @ 10% duty cycle: 16.6 oz (4.6 N)
  • Housing length: 0.75 in. (19.1 mm)
