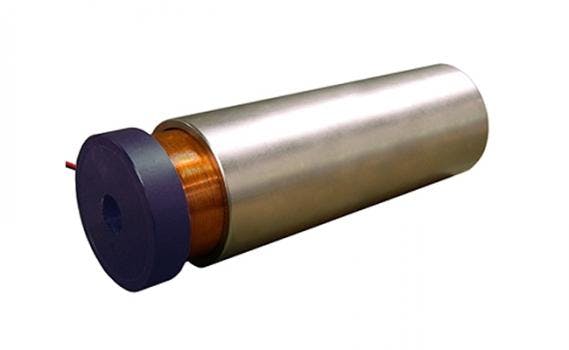

LVCM-019-048-02 Linear Voice Coil Motor

Aug. 3, 2022
The LVCM-019-048-02 Linear Voice Coil Motor from Moticont is an efficient, low inertia, high acceleration, brushless, high speed linear motor.

The 0.750 in. (19.1 mm) diameter LVCM-019-048-02 Linear Voice Coil Motor is a true servo motor featuring zero cogging, high accuracy, and high repeatability when operated in a closed position loop.  This small LVCM-019-048-02 diameter actuator has a 1.5 in. (38.1 mm) stroke length, a high-force-to-size ratio of 7.4 oz (2.1 N), and a peak force of 23.5 oz. (6.5 N) at 10% duty cycle.



The motor features an 8-32 UNC-2B threaded mounting hole in the center of the housing and on the coil end to easily integrate into new or existing applications. This efficient, low inertia, high acceleration, brushless, high speed linear motor is ideal for work holding and clamping, medical devices, haptic feedback, assembly, testing, laser machining and drilling, wafer handling, optical focusing, dynamic vibration absorption, scanners and laser beam steering, and filtering.

  • Stroke: 1.5 in. (38.1 mm)
  • Continuous force: 7.4 oz (2.1 N)
  • Intermittent force @ 10% duty cycle: 23.5 oz. (6.5 N)
  • Housing length: 1.875 in. (47.6 mm)
