BlueWave QX4 V2 LED Spot-Curing System

Manufacturers get the same benefits of LED technology, compact size, and curing versatility along with features to make the process even more efficient and user friendly with the BlueWave QX4 Version 2.0 LED Spot-Curing System.



Key enhancements to the unit include the addition of an easy-to-use touch-screen interface, intensity up to 23 W/cm2 depending on the wavelength, improved wand design for increased curing flexibility and accuracy, longer die life, and PLC functionality for simple system monitoring.

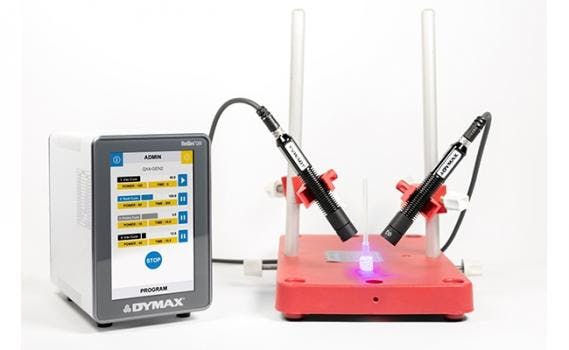

The BlueWave QX4 Version 2.0 is comprised of a controller and up to four LED heads, available in 365, 385, or 405 nm wavelengths, that can be operated in unison or independently of each other. LEDs installed directly at the end of the heads allow for precise light delivery, and mounting the heads close to components enables 360° cures of hard-to-reach areas on complex components.



Other important features include the capability to store up to 20 programs in variable mode, efficient LED-head temperature management, and the option of utilizing interchangeable/replaceable focusing lenses in multiple diameters that can be used in any combination.

Output frequencyRediCure: 365 nm PrimeCure: 385 nm VisiCure: 405 nmIntensity outputRediCure: 16.9 W/cm² PrimeCure: 22.9 W/cm² VisiCure: 22.0 W/cm²Power supply input100-240V ~1 A, 50/60 HzLED timer0.1 to 999 secondsLED activationFootswitch, front panel or PLCCoolingNatural convectionDimensions (W x D x H)3.5 x 5.5 x 5.6 in. (9.0 x 14.1 x 13.7 cm) Controller: 147.5 x 93.5 x 137.4mmWeightController: 2.2 lb. (1 kg) Head: 4.6 oz. (130 g)Unit warranty1 year from purchase dateOperating environment10 to 40°C (50 to 104°F), non-condensing

• One controller controls up to four LED heads for maximum application flexibility
• LED heads for 365, 385 or 405 nm wavelengths for better compatibility with different light-curable materials
• Improved, flexible LED heads can be programmed independently for accurate curing
• Individual exposure times and intensity settings available in 1% increments for each LED head allows for maximum curing flexibility
• Interchangeable/replaceable focusing lenses in 3, 5, and 8-mm diameters that allow tailoring of the unit to your curing requirements
• Instant on-off – no warm-up period and more energy efficient
• Efficient LED temperature management for continuous operation without overheating and comfortable hand-held operating temperature
• PLC touch screen interface that is easily incorporated into automated systems
