KONTEC KSC mini Vise

July 9, 2021
SCHUNKS compact vise for small components features a jaw quick-change system and high clamping forces for its class.

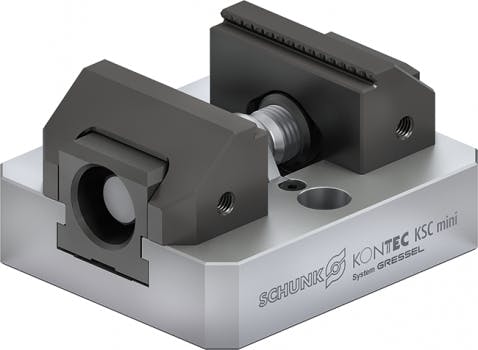

The KONTEC KSC mini small parts vise features a jaw quick-change system and high clamping forces.



The KONTEC KSC mini is the vise of choice for flexible use in efficient blank and finish part machining. Conversion on a larger clamping range is even possible without requiring additional accessories. Different jaw widths of 45 and 70 mm can be used on the same basic vise, allowing optimal adjustment to different clamping tasks. Due to its accessibility, the KONTEC KSC mini is ideal for 5-sided machining.



Despite its compact dimensions at a maximum 16 kN, the KONTEC KSC mini has a high clamping force and makes a performing work step of the parts unnecessary. Therefore, it's suitable for any application in small parts handling where clamping is done out of the center. But its use is also interesting for the automotive and metal-cutting industry, as well as for tool and mold making. Due to its high clamping force, the vise is excellently suitable for blank and finish part machining. The small parts vise has a width of 70 mm, and a maximum torque of 50 Nm. The offered vise lengths are 80 and 100 mm and enable high flexibility on the workpiece. Its stainless and hardened base body also ensures a long service life.

  • Jaw quick-change without tools
  • Adjustment to new clamping tasks within seconds
  • High clamping force
  • Ensures process reliability during machining
  • Large clamping range
  • High flexibility at the workpiece
  • Optimal accessibility
  • Ideally suited for 5-sided machining
  • Wide range of applications
  • Suitable for machining of finished and unfinished parts
  • Small and compact design
  • Ideal for multiple applications to increase machine running time
  • Wide jaw program
  • Optimum adaptation to new clamping tasks, even with different jaw widths
  • Stainless and hardened base body
  • Dirt insensitive and low-maintenance clamping device
 IDWidthMax. clamping forceMax. torqueWeight
KSC mini 70-80145210270 mm16 Kn50 Nm0.9 kg
KSC mini 70-10014521031.1 kg
