Plug & Play Smart Meters

May 6, 2021

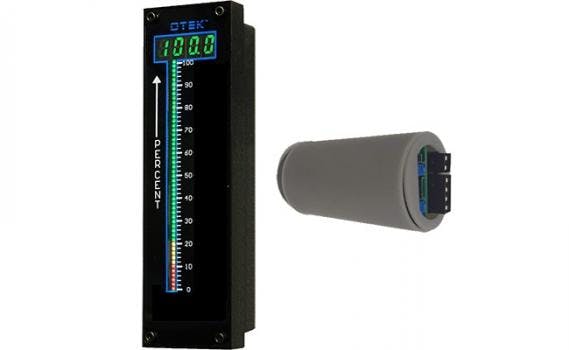

Otek's Plug & Play (PNP) series of smart meters are able to reduce spare inventory by at least 50% and combat instrumentational obsolescence at the same time.

One Size Fits All (1SFA)/Plug & Play (PNP) series of smart meters kills two birds with one stone. Able to reduce spare inventory by at least 50% and combat instrumentational obsolescence at the same time, the PNP series aims to change how I&C rooms approach digitization.



With versatility at the core of these meters, the PNP series uses a universal I/O module that can accommodate up to four signal conditioners and over 50 input signals, enabling users to replace any meter in a control room regardless of size, shape or function. Inserted into a cylindrical Hub unit, this universal I/O module then plugs into the back panel of any instrument by way of unique adapter plates that ensure the PNP meter serves as a drop-in replacement without any change to the surrounding panel or wiring. This versatility eliminates the need for multiple spares, as a single unit can provide support for a plethora of meters functioning in the control room.



Serviceable to nearly any application, the PNP series is available in nuclear, mil-spec, and industrial grades.



For more information about this product or to get a quote, see Otek's contact information on the left.

  • 4½ digit display
  • ± 0.5% accuracy of the full scale ±1 LSD
  • Temperature coefficient: ± 50 PPM/°C
  • Operating temp of -20 to +70°C
  • CMRR: >90dB@ 50-60Hz
  • Humidity levels of 5 to 95% (non-condensing)
  • Front panel options for NEMA 3 or NEMA 4X
  • EMI/RFI Class1E adherence
  • Power requirements for loop-powered options at >10<100mW and external requirements at >50<200mW—with a conversion rate of 3 seconds
  • Recalibration suggested every 2 years
