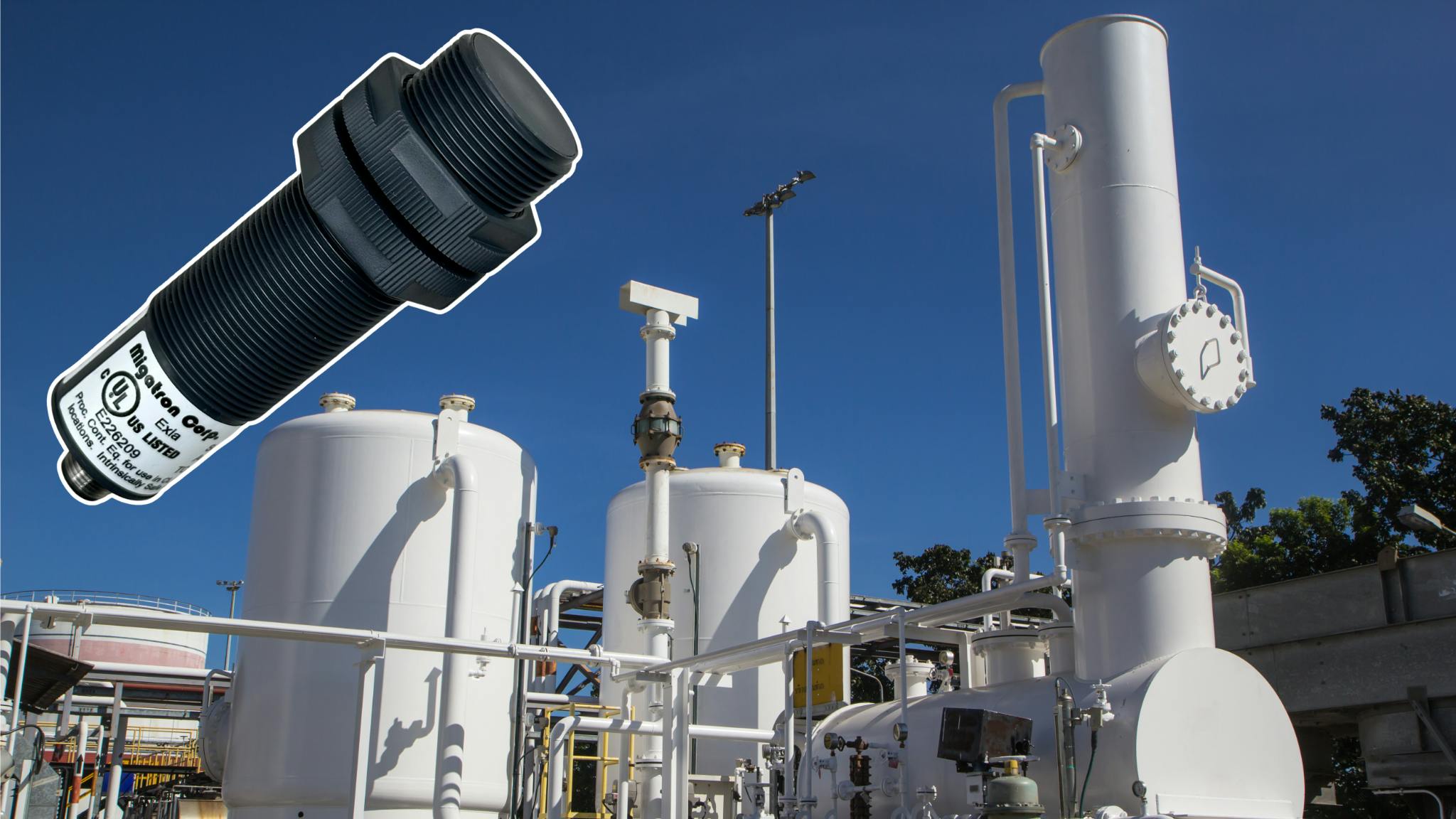

The RPS-429AA-40P-IS2 Intrinsically Safe Ultrasonic Sensor offers accurate and reliable distance measurement and object detection.
This sensor is ATEX, IECEx, & C-UL-US certified, meaning it can be deployed in Zone 0, 1, 2, 20, 21, or 22 explosive atmospheres and Class I, II, and III hazardous locations.
It delivers reliable performance for distance and level measurements, even in challenging conditions. Built with an IP66/67-rated enclosure, the sensor features a 4-20mA, 2-wire current loop design, a 4 to 40 in (10 to 100 cm) range, and a 100 ms response time.
It's self-contained in a 30 mm (1 in) barrel-style enclosure and is powered by 14 to 30V DC with reverse polarity protection. Built-in temperature compensation provides accurate readings throughout the entire operating temperature range.
Features:
- Intrinsically Safe
- ATEX, IECEx, & C-UL-US certified
- Precise distance and level measurements
- IP66/67-rated enclosure
- 4-20mA, 2-wire current loop design
- 14 to 30V DC input voltage
- Reverse polarity protected
- Short circuit protected
- Built-in temperature compensation
Migatron Corporation
Woodstock, IL
(815) 338-5800
[email protected]
migatron.com
