Category 2 Safety Relay Module

March 16, 2021

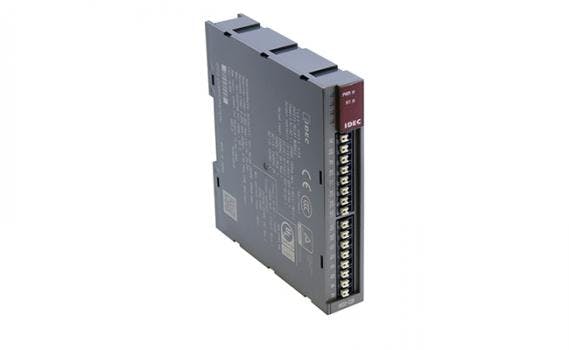

The latest addition to IDEC’s family of safety devices, the HR5S safety relay module, gives designers and OEMs more options to provide better end-user safety while cutting costs and improving the productivity of machines and equipment. The HR5S safety relay module is the first on the market designed specifically to meet ISO 13849 Category 2 requirements.



The HR5S safety relay modules specifically comply with Category 2 requirements, increasing designer flexibility when the required performance level (PLr) risk assessment identifies conditions to be PLc or below. While categories 3 or 4 mandate redundancy, Category 2 allows a more straightforward safety implementation where “testing occurs immediately upon demand of the safety function”.



HR5S safety relays are available in three configurations for a range of applications. The Simple type can be used for applications up to PLc, while Standard and Off-Delay types work for designs up to PLd and add failure detection features. While most Category 3 and higher relays consume 45 mm of installation width, the HR5S is only 22.5 mm wide and can be mounted on DIN rails or a backpanel surface.



Push-in terminals are used for ease of installation and vibration resistance, accepting solid wires up to 16 AWG or stranded wires up to 18 AWG with ferrules. Inputs are rated for 24V DC, and outputs are rated up to 250V AC 3A. The HR5S safety relay modules comply with many standards including EN ISO 13849-1:2015 and UL 508.



HR5S safety relays make it easier and more economical for machine builders and OEMs to apply approved safety designs in additional applications, for new systems and also for retrofit cases. In addition to these opportunities, Category 2 designs and safety relays can be used to warn users of impending issues instead of automatically stopping equipment, providing productivity gains through increased uptime.

  • The first category 2safety relay module in the industry
  • Ideal for low-risk machines
  • Safety with non-redundant safety circuit.
  • Push-in terminals save installation labor and prevent loosening of wires
  • Slim body save control panel space
