    Oscillators Deliver Low Phase Noise

    March 14, 2018
    Pasternack Enterprises' diode oscillators feature mechanical tuning capability ranging up to ±3 GHz.
    Related To: Pasternack Enterprises, Inc.
    66676d0f94f10f0008376f77 830 350

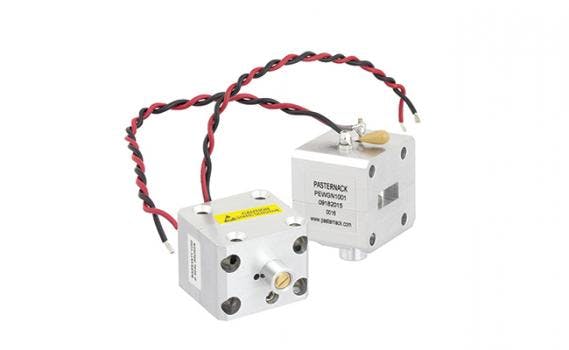

    Compact waveguide Gunn diode oscillators are tunable and generate signal levels that exhibit low phase noise at popular K and Ka band frequencies. Due to the extremely high external Q and temperature compensation mechanism, these oscillators exhibit excellent frequency and power stability, lower phase noise, and higher anti-load pulling characteristics. There are two models in this series, the PEWGN1001 model is a K-Band waveguide Gunn oscillator module that generates a center frequency of 24.125 GHz with a tuning range of +/- 1.0 GHz. The PEWGN1000 model generates a Ka band center frequency of 35 GHz with a tuning range of +/- 3.0 GHz.  Both models incorporate self-locking tuning screws.



    Performance specifications include phase noise as low as -98 dBc/Hz typical at 100 KHz offset and frequency stability as low as -0.2 MHz/°C maximum. The output power of these oscillators is +10 dBm min with power stability of -0.03 dB/°C maximum. Bias supply is +5 to +5.5 Vdc at 200 to 250 mA typical with an operating temperature range of -40 to +85°C.  The rugged and compact package designs support output frequency ports with fully integrated Mil-grade waveguide flanges of WR-42 UG-595/U for K band and WR-28 UG-599/U for Ka band.



    Typical applications include transmit and receive oscillators for radio communications, local oscillator source that can be multiplied for higher mm-wave frequency test and measurement, military and commercial radar sources, police radar, Doppler sensors and security screening.



    Part No.Center
    Frequency
    (GHz)    		Tuning
    Range
    (GHz)    		Output
    Power
    Typ
    (dBm)    		Frequency
    Stability
    (MHz/oC)    		Power
    Stability
    (dB/oC)

    Phase
    Noise
    100 KHz Offset
    (dBc/H) (Typ)

    		Waveguide/Flange
    Size
    Bias
    Voltage
    (Vdc)
    PEWGN100124.125+/- 1000+10-0.2-0.03-98WR-42/
    UG-595/U    		5
    PEWGN100035+/- 3000+10-0.4-0.04-95WR-28 /
    UG-599/U    		5.5





    Features:

    • 2 Models with Popular K and Ka Band Center Frequencies of 24.125 and 35 GHz
    • Designs feature mechanical tuning capability ranging up to ± 3 GHz
    • Excellent Phase Noise Performance as low as -98 dBc/Hz typical
    • +10 dBm Output Power with Frequency Stability as low as -0.2 MHz/°C
    • Models have an Operational Temperature Range of -40 to +85°C
    • Compact Aluminum Packages have Precision Machined Cavities that exhibit Optimum Performance
    • Fully Integrated Mil Grade WR-28 and WR-42 Waveguide Ports
