Differential Pressure Control

Dec. 20, 2017
Ashcroft Inc. offers a differential pressure gauge that offers superior magnets for smoother operation.

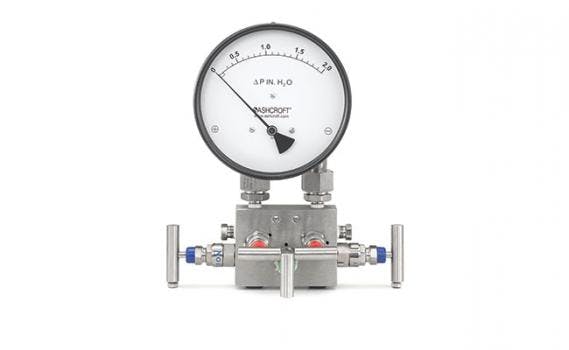

V03 manifold/valve assemblies provide isolation and control in systems equipped with Ashcroft 1132 and 1133 differential pressure gauges. Available in 3 or 5 way configurations, these stainless steel manifolds permit removal of the gauge without disrupting the process. They also allow hi and lo side equalization prior to startup to eliminate damaging hi-side spikes. 1132 and 1133 gauges can be direct mounted or remote mounted via a capillary or hard tubing.

Accuracy: ±2% (ascending pressure)
Pressure Ranges: 0-1" IWD thru 0-25" IWD
Dial size: 3 1/2", 4", 4 1/2" and 6"
Case: stainless steel
Body: aluminum or stainless steel
Wetted Material: body material, Teflon®, ceramic and various O-ring materials



Features:

  • High static pressure capability (500 psi)
  • Superior magnets for smoother pointer motion
  • Reed switches (optional) for direct system control
