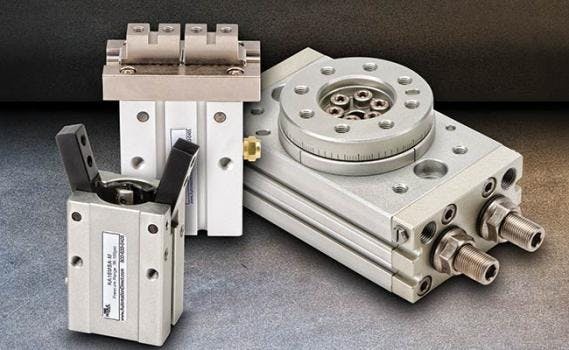

NITRA rotary actuators are available in four body sizes with or without shock absorbers. All are double acting and have an adjustable travel range from zero to 190-deg. Anodized aluminum bodies include integral mounting slots for position switches and a durable ball-bearing hub and integrated piston magnets are standard. The compact design of the NITRA rotary actuators is ideal for general material handling and other industrial applications such as conveying, clamping, transferring parts, positioning, and controlling valves.
NITRA Pneumatic Grippers are compressed air actuators with jaws (or fingers) to pick up, hold and release objects and are used in a broad range of general automation processes such as pick and place, material transfer, clamping, and indexing. Two jaw parallel and two jaw angle NITRA grippers are available in seven body sizes and with side mount or end mount grips. Parallel grippers open and close parallel to the object and angle (or angular) grippers open wider than parallel jaws requiring more space. NITRA Pneumatic Grippers are either double-acting, single-acting normally open, or single-acting normally closed. Anodized aluminum bodies include integral mounting slots for position switches.
Pneumatic Actuators – Rotary:
- Four body sizes (10, 20, 30, 50 lb-in @ 80 psi)
- Anodized aluminum bodies
- Available with rubber bumpers or shock absorbers
- Position switch ready with integral mounting slots
- Zero to 190-deg. adjustable rotation
Pneumatic Grippers – Parallel:
- Side Mount Grip and End Mount Grip versions
- Seven sizes available (6 to 40 mm bore)
- Double acting or single acting N.O. or N.C.
- Anodized aluminum bodies
- Position switch ready with integral mounting slots
Pneumatic Grippers – Angle:
- Side Mount Grip
- Six sizes available (6 to 32 mm bore)
- Double-acting N.O. or N.C.
- Single-acting N.O.
- Anodized aluminum bodies
- Position switch ready with integral mounting slots
