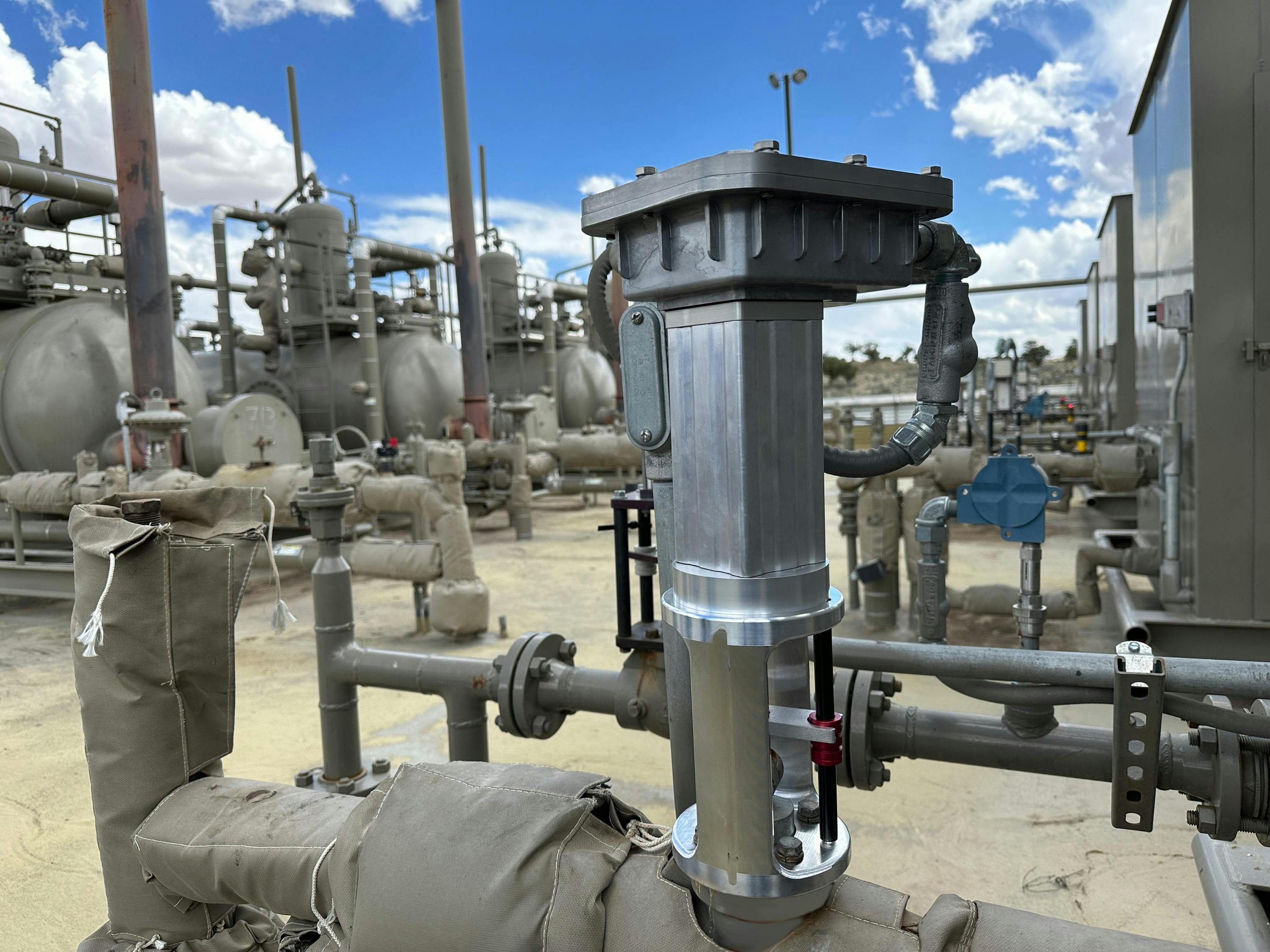

The Exlar Tritex EVA electric valve actuator is CSA Class 1, Division 2 (C1D2) Hazardous Location certified. The Tritex EVA answers the demand for an efficient, high-speed solution while meeting the Methane Emissions Reduction Program (MERP) and Quad-O zero-emissions regulations in the Oil & Gas Industry.
The Tritex EVA is environmentally friendly and efficient with a powerful, compact system integrating a servo drive, motor, and roller screw actuator to achieve extreme life, speed, and accuracy. Combining the simplified actuation system with Modbus RTU communications enables producers to have remote operation and monitoring with fewer components when compared with pneumatic systems.
Features:
- Field tested and approved for use in American oil fields
- 100% duty cycle rated for continuous modulation
- Fast valve close times in as little as 1 second
- Robust roller screw drive train for low maintenance and industry-leading life
- Servo design allows for valve jam protection
- Advanced valve seating control extends valve life
- Absolute position sensing for increased control
- Compact overall footprint
Applications/Industries:
- Oil & gas wellhead valve control
- Pipeline valve control
- Dump valve
- Separators
- Pressure valves
- Gas lift valves
- Compressor scrubbers
- Damper control
- Knife valve control
- Chemical pumps
- Plunger lifts
- Injection pumps and more
| Rated Thrust | 1,000 lb-ft (4.4 kN) |
| Seating Thrust | 1,500 lb-ft (6.67 kN) |
| Speed | 1 in/s (24 mm/s) @ 24V DC |
| Stroke Length | 4 in. (102 mm) |
| Input Voltage | 12 to 24V DC nominal, 9 to 32V DC |
| Input Current | 10 A @ rated thrust, 1 A @ nominal thrust |
| Endurance | 10,000 + starts, 3,600+ starts/h |
| Duty | Class D continuous modulating, 100% duty cycle |
| Life | 10,000,000+ cycles over 10 years |
| Serial Interface | Isolated Modbus RTU (RS-485), max baud rate 38.4 k |
| Software Tool | Free-to-download Expert PC commissioning tool |
| Digital Inputs | 3 Isolated, 9 to 30V DC |
| Digital Outputs | 2 Isolated, 9 to 30V DC |
| Analog Input | 1 Isolated, 4-20 mA, position/thrust demand |
| 0.1% resolution 0.5% linearity over temp range | |
| Analog Output | Isolated, 4-20 mA, position/thrust feedback |
| 0.1% resolution, 0.5% linearity over temp range | |
| Enclosure | NEMA 4X, IP66 |
| Operating Temp. | -40 to 149°F (-40 to 65°C) |
| Storage Temp. | -58 to 185°F (-50 to 85°C) |
| Mounting | Face mount, any orientation, with valve adapter |
| Noise | Less than 70 dB operation |
| Approvals | cCSAus Class 1, Division 2, Group A, B, C, D, T5 |
