Detect-A-Finger drop-probe device is designed to prevent a riveter, welder, or other small machine from cycling if it encounters fingers in the point-of-operation area, therefore preventing contact between the operator and dangerous moving parts.
Whenever an operator initiates a machine cycle, typically through an electric foot switch, the Detect-A-Finger sensing probe is automatically released, ensuring that safeguarding cannot be deactivated or overlooked by the operator. If the probe detects anything more than the material thickness, it halts the machine from cycling. However, if an operator's fingers or hands have not entered the point-of-operation area, the sensing probe will drop into its preset position, and the Detect-A-Finger's control unit will allow the machine to cycle to maintain ongoing machine productivity and performance.
With its compact design, it easily mounts on most machines, regardless of brand, providing fabricators with an invaluable way to enhance both safety and productivity. Depending on space and preference, the drop probe assembly can be mounted on either the left or right side of a machine, while the head and control unit are normally mounted on the machine frame or custom-fabricated brackets. The aluminum probe rod is shaped to fit around the tooling, allowing parts to be formed safely at high speed to achieve maximum output.
- The RKC-000 Detect-A-Finger model is for smaller machines, including riveters, eyeletters, stakers, staplers, crimpers, and fastening and assembly machines.

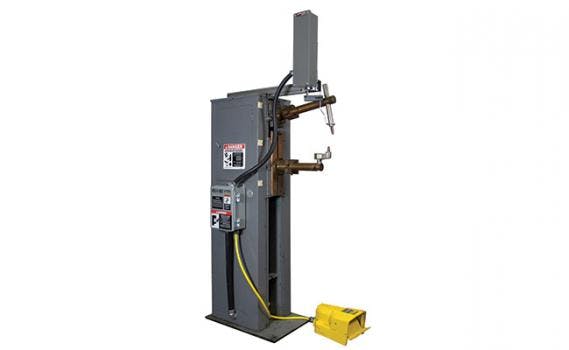

- The RKC-500 Detect-A-Finger model is exclusively for welders. The unique design of its sensing probe module allows it to be attached to a welder arm, whether it is fixed or moving. Depending on the type of welder, a single-stage or a two-stage foot switch may be required. It may also be applied to mechanical foot pedal-type welders, although the mechanical pedal must be removed and replaced with an air cylinder.
- The DAF-100 Detect-A Finger is the premium version for both riveters and welders. Featuring an adjustable stroke up to four-inches, it comes with the control box, drop-probe assembly, aluminum sensing probes, and other necessary components.
All Rockford Systems Detect-A-Finger versions are designed for compliance with OSHA 29 CFR, Subpart 0, 1910.212 general requirements for all machines.
