The SCN Series SuperCylinders are the perfect fit for critical applications demanding high capacities and high speeds.

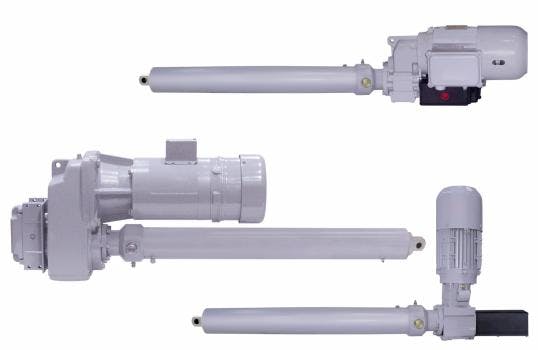

SCN Series SuperCylinder uses the combination of a precision-guided translating tube system coupled to a motor and reducer via a trunnion housing. Three basic configurations are available: offset, parallel, and right angle. The ground and chrome-plated translating tube sliding in polymeric bearings produce excellent wear resistance. This guided tube assembly lets SuperCylinders achieve much greater stroke lengths in compressive loading than is possible with conventional double clevis mounted mechanical actuators.
The enclosure of the screw by the tube system shields it from environmental contaminants and retains lubricants, requiring less maintenance and allowing longer service. SuperCylinders use hydraulic cylinder grade wiper seals to effectively exclude dirt from the screw area.
- SPEEDS: Up to 196.1 in/min (83 mm/s)
- BRAKE MOTOR: TEFC 230/460 VAC, 3ph, 60 Hz
- STROKES: Up to 61 in (1,549 mm)
- TEMPERATURE RANGE: 0ºF to 120ºF (-18ºC to 50ºC)
- HAZARDOUS RATED MOTOR: (Class 1, Group D and Class 2, Group F & G)
