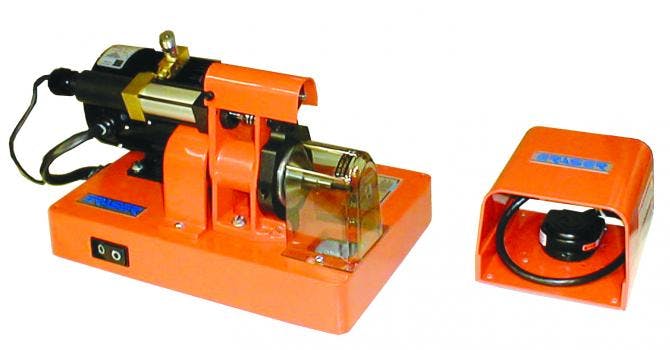

Eraser's Model K8A is a precision rotary wire stripper perfect for processing material such as round extruded, built-up (solid and stranded), magnet, enamel and film insulated wires and coaxial cables. It can also process tough insulations such as Kapton, silicon rubber and armored polythermaleze. There are two varieties available, in clockwise and counter clockwise rotation, so the head can be matched to the lay of the wire being stripped. Diamond tipped blades designed for very long life are available by special order.
Blade depth, blade pressure, and strip lengths are adjustable and ensure consistent strips. When stripping stranded or extruded insulated wires, stripping is fast and effective with little risk of damage to the wire conductor. A reversible motor permits changing the direction of twist.The K8A may be used to three-stage strip coaxial cables. Close-up stripping to work pieces, coil bodies and bobbins is possible as the blade tips are located directly behind the see through guard. Window stripping on magnet wire is also possible by removing the strip length stop.
The Eraser Company, Inc., celebrating its 95th anniversary in business, manufactures a wide range of industrial products including wire, cable and tubing cutters, wire and cable strippers, wire twisters, wire brush wheels, dereelers, infrared heating equipment, measuring tools, and fybRglass® erasers. The company is ISO 9001:2000 certified. The company offers Free E.S.P. (Eraser Sample Program). Send a 10-20 foot sample of your material and Eraser will recommend the best solution for your processing needs from its line of more than 200 products. For unique processing needs, Eraser will custom design a solution for you.• Wire Size of Extruded Wires and Built-Up Insulations - 38 AWG-8 AWG (0.10-3.25mmø) or up to 3/8" OD (9.5mmø) • Wire Size of Film Insulated and Magnet Wires - 28 AWG-11 AWG (0.33-2.31mmø) • Strip Lengths of Extruded Wires and Built-Up Insulations - 0 to 1 3/8" (0-34mm) • Strip Lengths of Film Insulated and Magnet Wires - 0 to 1 3/8" (0-34mm) Infinite strip lengths possible if length stop is removed • Power -Air operated, 220/240V 50Hz European plug, 90PSI
