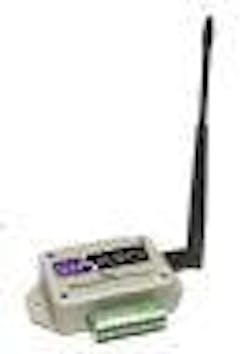

The Universal Output Module will duplicate a received analog (current or voltage) signal aswell as a digital (on/off) signal from other XR sensors. The UOM also has a counter input,enabling it to act as a 900MHz pulse counter. This unit can operate independently or act as a repeaters.
P/N: XR9-UOM (900Mhz), XR24-UOM (2.4Ghz)
• Input (0-10vdc) 62k ohms, 0-10 volt, 12-bit resolution, 9.99v=4095 • Input (0-20mA) 120 ohms, 0-20.83 milliamp, 12-bit resolution, 20mA=3932 • Standard Transmission rate Preprogrammed at factory 10 - 17 sec (418Mhz) / 5 minutes (900Mhz, 2.4Ghz) • Max. Transmission Range (LOS) 1 mile (900Mhz), 2500ft (2.4Ghz), 600ft (418Mhz) • Transmission Range (Indoor) 1300ft (900Mhz), 400ft (2.4Ghz), 200ft (418Mhz) • Shelf life with battery installed 10 Years in quiescent mode • Battery life with transmissions 5 years with standard transmission rate • Weight 1.5oz (418Mhz) / 4.7 oz. (900Mhz, 2.4Ghz) • Operating Temperature -40° to 85° C • Humidity 0% to 90% non-condensing
