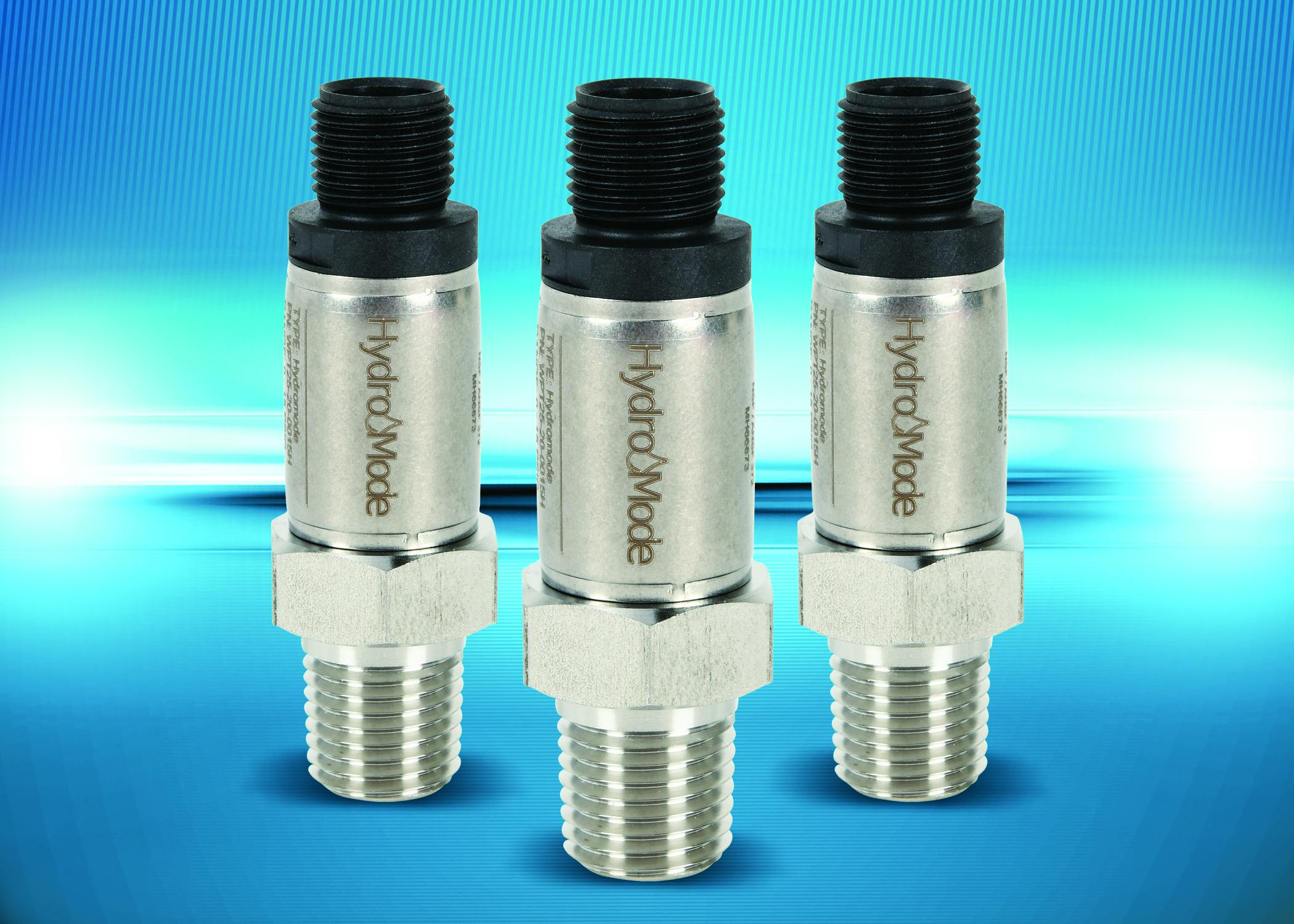

HydroMode WPT25 Series Pressure Transmitters for Drinking Water Applications

June 27, 2024
AutomationDirect's HydroMode WPT25 series pressure transmitters provide pressure measurement signals for a variety of applications, offering pressure ranges from 15 to 300 psig and a 2-year warranty.

HydroMode WPT25 series pressure transmitters are UL Classified NSF/ANSI/CAN 61 and 372 for drinking water applications. Featuring a 316L stainless steel construction, they provide pressure measurement signals for a variety of applications, such as controls, data collection, and telemetry systems.

The series offers full-scale pressure ranges from 15 to 300 psig, a 1/4-in. NPT male threaded process connection, and a 2-wire, 4-20mA analog output with an M12 quick disconnect.

CE marked, RoHs compliant, and IP54 rated, they offer a 2-year warranty.

Features:

  • Pressure ranges up to 300 psig
  • All 316L stainless steel wetted materials
  • 4 to 20 mA output
  • 8 to 32V DC operating voltage
  • +/-1% accuracy
  • 1/4-in. male NPT process connection
  • 4-pin M12 quick disconnect
  • IP54 protection rating

Price: Starting at $95


AutomationDirect
Cumming, GA
(800) 633-0405
[email protected]
www.automationdirect.com
