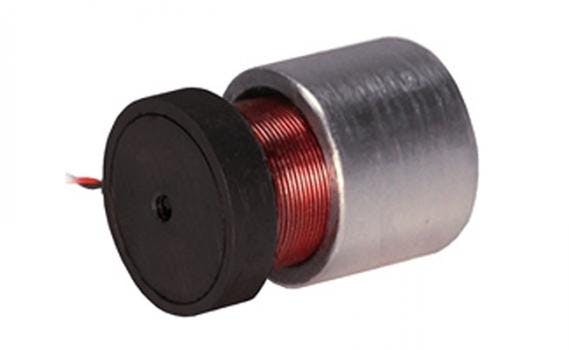

The LVCM-013-008-02M Miniature Metric Linear Voice Coil Motor, also known as a moving coil motor, is only 0.5 in. (12.7 mm) in diameter. It has a high force-to-size ratio with a continuous force of 0.86 N (3.1 oz) and a peak force of 2.73 N (9.8 oz).The stroke length is 0.125 in. (3.175 mm) and the length at mid-stroke is just 0.5 in. (12.7 mm) long.
This clean brushless DC linear servo motor featuring high acceleration/deceleration and low inertia is ideal for many applications, including haptic feedback in medical/surgical instruments, vibration damping, work holding and clamping, laser machining and drilling, assembly, sorting, packaging, sampling, scanning, laser beam steering and filtering, wafer handling, and pharmaceutical applications.
The LVCM-013-008-02M voice coil motor has a M3x0.5 threaded mounting hole in the housing and M3x0.5 threaded mounting hole in the coil end for easy integration into new and existing applications. A complete plug-and-play system and servo controller is also available.
- Diameter: 0.5 in. (12.7 mm)
- Continuous force: 0.86 N (3.1 oz)
- Peak force: 2.73 N (9.8 oz)
- Stroke length: 0.125 in. (3.175 mm)
- Length at mid-stroke: 0.5 in. (12.7 mm) long
