Transmit Measurements Wirelessly

Oct. 13, 2018

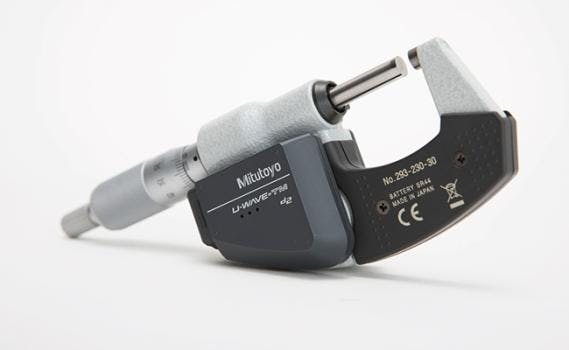

The U-Wave fit is a compact attachment for Mitutoyo calipers and micrometers that transmits measurements wirelessly to a PC using the digimatic protocol. The elimination of long, cumbersome data cables help improve measurement efficiency and speed while maintaining precise accuracy. The unit’s user-friendly interface allows data to be loaded into any software product that accepts keyboard input.



Named for its comfortable, ergonomic design, the U-Wave fit quickly and easily installs for over 1,600 different Mitutoyo calipers and micrometers. The unit’s design allows the operator to handle and use the tool with comfort and confidence without sacrificing accuracy.



The U-Wave fit is available in models including IP67 and buzzer types for 4”, 6”, 8” and 12” IP67 calipers, standard calipers and coolant-proof (IP65) micrometers.  During standard operation, the U-Wave fit has a wireless range of 20m (60 ft.) and its 220mAH battery lasts for over 400,000 transmissions.  The Digimatic2 communication format is high resolution and sends polarity and the unit of measure.
