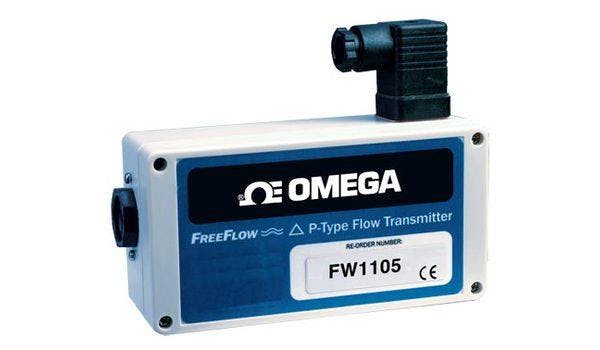

The new FW1000 series are a low-cost, minimally invasive series of wedge flow sensors. This unit offers high accuracy and repeatability with no required inlet or outlet straight plumbing. The design allows users to install the meter in any full pipe orientation (horizontal, vertical or inverted). This CE compliant series is offered with several flow ranges to accommodate the typical requirements in process water applications.* Accuracy: ±2% of full-scale * Repeatability: ±½% of full-scale * Maximum Operating Pressure: 8.6 bar (125 psig) Maximum Operating Temperature: 76°C (170°F) * Standard Test Media: Tap water @ 21°C (70°F) * Electronic Output: 0 to 5 Vdc (standard), 4 to 20 mA (optional) * Power Requirements: 12 to 35 Vdc * Flow Measuring Range: 0.5 to 15 GPM (1.9 to 57 LPM) full-scale * Turn Down Ratio: 10:1 * Maximum Current Consumption: <50 m ADC * Minimum Load Resistance: 1000 ? * Maximum Transmission Distance: <61m (<200') * Resolution: Infinite * Response Time:<500 mS to 90% (step change) * Protection: Short circuit, transient and reverse polarity * End Ports: PVC * Wedge Element: PVC * Pressure Sensor: Polyetherimide * Electrical Enclosure: Polycarbonate
