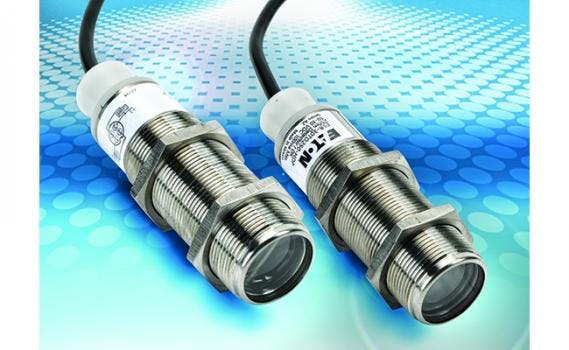

The rugged Eaton E58 series M30 harsh duty photoelectric sensors feature stainless steel, PVDF, and tempered glass components that are mechanically assembled using Vitron seals to ensure resistance to chemicals and moisture intrusion. The sensors are available in diffuse reflective with background suppression, retroreflective, polarized reflective, and through-beam models.
Through-beam models boast an 800 ft. (250 m) sensing range, and all models offer good excess gain, allowing them to function in heavily contaminated applications. Eaton E58 series sensors offer light-on or dark-on operation, are available with solid state relay or NPN/PNP outputs, and are UL listed, CE marked, and RoHS compliant.
- Diffuse reflective with background suppression, retroreflective, polarized reflective, and through-beam styles
- Sensing distances up to 800 ft. (250 m)
- NPN/PNP 100 mA outputs or solid-state outputs rated at 300 mA
- High excess gain allows accuracy despite contamination in the environment
- 10 to 30V DC and 15 to 30V DC / 20 to 132V AC operating voltages
- Complete overload protection
- AC micro ½"-20 UNF thread or M12 quick-disconnect models (purchase cable separately)
- IP69 protection rating
