TS8 Disconnect Module Transforms Industrial Enclosures

Oct. 31, 2013

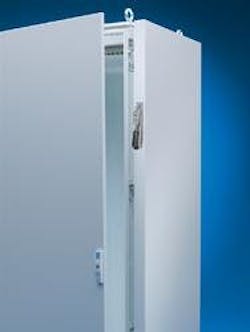

Rittal's TS8 Disconnect Module turns any single door TS8 modular freestanding industrial enclosure into a flange-mount disconnect enclosure.

The TS8 Disconnect Module quickly and easily turns any single door TS8 modular freestanding industrial enclosure into a flange-mount disconnect enclosure. It simply installs in place of a standard TS8 sidewall and interlocks with the enclosure door to function just as well, and as safely, as any conventional disconnect door would. Its compact design features a width of only 4 in. and eliminates the need for the typical disconnect door which is twice that size—making it possible to meet application requirements while conserving valuable floor space.



The module is available in four different sizes with the consistent 4 in. width, heights of 71 or 79 in. and depths of 16, 20, and 24 in. to accommodate TS8 enclosure specifications.



The module is compatible with disconnect handles from the most well-known manufacturers in the industry such as Allen Bradley, Square D, Siemens, GE, and Moeller. Additional benefits include a variety of useful accessories like a mounting panel infill that installs in the enclosure to create an extra 4 inches of mounting panel space to coincide with the width added by the disconnect module—giving the user the opportunity to fully utilize all available interior space.
