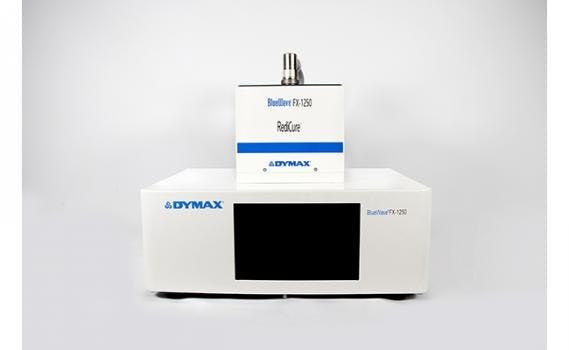

BlueWave FX-1250 LED Flood-Curing System

Utilizing Dymax LED emitters available in 365, 385, and 405 nm wavelength, the BlueWave FX-1250 LED Flood-Curing System generates high light intensity and uniformity, enabling improved depth, speed, and fullness of cure.



It provides its uniformity in a 5 x 5 in. (127 x 127 mm) curing area. Along with true, high irradiance LED light, it has an enhanced controller with an easy-to-use interface. A large, high-contrast 7 in. (177.8 mm) display screen is easy to read and populated with intuitive graphics, menus, and information.



The controller can be activated and remotely monitored by PLC and store up to 16 programs and parameters for repeatable processes. Additionally, it can continuously monitor the health of the emitters and controller and report faults directly to the controller display.



The unit has no warm-up period, low heat emission, and features quiet, efficient operation.

Output frequencyRediCure: 365 nm PrimeCure: 385 nm VisiCure: 405 nmIntensity OutputRediCure: 1.7 W/cm² PrimeCure: 2.1 W/cm² VisiCure: 2.0 W/cm²Curing Area5 x 5 in. [127 x 127 mm]Power Requirements100-240V? 10 Amps, 50 to 60 HzCoolingAir-cooledDimensions (W x D x H)1 CH Controller: 380 x 320 x 165 mm
(15 x 12.6 x 5.8 in.) 2 CH Controller: 420 x 350 x 165 mm
(16.5 x 13.8 x 5.8 in.) Emitter: 170 × 134 x 162 mm (6.7 x 5.3 x 6.4)Weight1 CH Controller: 12.8 kg (28.2 lb.) 2 CH Controller: 19.8kg (43.7 lb.) Emitter: 4 kg (8.8 lb.)Unit Warranty1 year from purchase dateOperating Environment10 to 40°C (50 to 104°F) 0-80% relative humidity, non-condensing, 2,000-meter max. altitudeShipping and Storage ConditionsTemperature: -20 to +50°C Humidity 10 to 80% RH, Non-condensing Ship via standard ground, ocean or air freightCertificationsRoHS, CE Marked

• High intensity, high total irradiance for quick curing
• Large 5 x 5 in. (127x127mm) curing area
• Excellent uniformity
• One controller operates up to two channels
• LED heads for 365, 385 or 405 nm wavelengths for better compatibility with different light-curable materials
• Fully programmable and can store up to 16 programs
• PLC touch screen interface that easily incorporated into automated systems
• Efficient LED temperature management for continuous operation without overheating
• Instant on-off – no warm-up period and more energy efficient
• Cross-platform compatibility with UVCS 3.0 conveyor system
