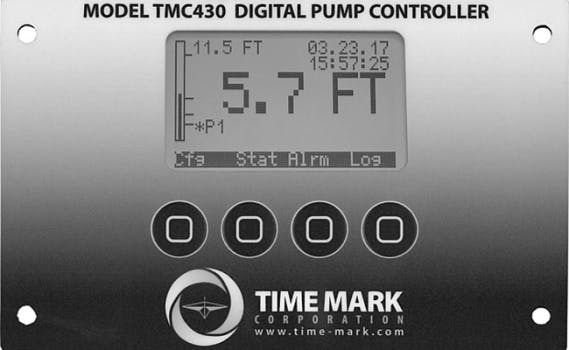

TMC430 Digital Pump Controller

Jan. 22, 2018

The Time Mark model 430 pump controller is a versatile and advanced liquid level/pump management system. The Model 430 was designed to control up to three pumps with a 4-20mA input. It can also be used to control 2 pumps with a 4-20mA input and backup floats or to simply control two pumps with only float inputs. Alarm inputs are provided, if necessary, and may be disabled through the menu system if not used. Alarm inputs are: “SF” – seal fail, “OT” – over temperature, “CF” – contact failure, and “SP” – spare (eg. a second seal fail). A relay output is provided for the level alarm (either high or low), depending on pump configuration; “pump UP” or “pump DOWN”.

Display

Side-lit, graphic 128x64 pixel LCD

Control/Alarm Relays

4 SPDT (Form C); 10A @ 240VAC (Resistive)

Inputs

12 digital (4 pump alarms for pump 1 and 2, either 4 pump alarms for pump 3 or floats), 1 analog (4-20mA)

Signal Outputs

1 analog (4-20mA) for retransmission of transducer signal

Loop Power

12VDC @ 20mA

Power

24VDC

Data Logging

Real time clock and calendar provides event logs with pump status, alarm type as well as date and time of alarms

Communications

RS-485; USB

Mounting

Flush Mount/Surface Mount
(Optional: DIN Rail Mounting kit available)
