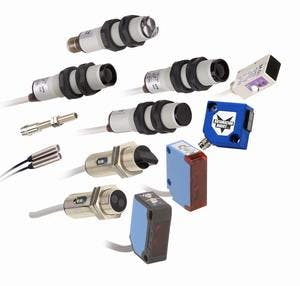

We offer a variety of industrial sensors, photo eyes and photoelectric switches in a variety of shapes and sizes to be used in a wide range of short or long-distance sensing applications, including harsh duty applications.
ecification FA Series LED DC FA Series Laser DC SS Series DC MS Series DC
Description 18mm plastic, DC 18mm plastic, DC 18mm plastic, DC
18mm plastic with background
suppression, DC
Sensing Distances
Diffuse models: 1m
Reflective models: 3m
Through-beam: 20m
Diffuse models: 300mm
Reflective models: 20m
Through-beam: 50m
Diffuse models: 100mm, 200mm,
400mm
Reflective models: 2m
Through-beam models: 8m
Diffuse Reflection
Standard distance models: 50mm
Extended distance models: 100mm
Output State Complementary N.O. / N.C. Complementary N.O. / N.C. N.O. / N.C. selectable N.O. / N.C. selectable
Logic Output NPN / PNP NPN / PNP NPN / PNP NPN / PNP selectable
Connection Type Axial cable / M12 connector Axial cable / M12 connector Axial cable / M12 connector Axial cable / M12 connector
Supply Voltage 10-30VDC 10-30VDC 10-30VDC 10-30VDC
Switching Frequency 250Hz
Diffuse and reflective models: 800Hz
Through-beam models: 1kHz
Diffuse and reflective models: 250Hz
Though-beam models 25Hz
80Hz
Rating IEC IP67 IEC IP67 IEC IP67 IEC IP67
