Model 30 High Voltage Timer

Jan. 22, 2018

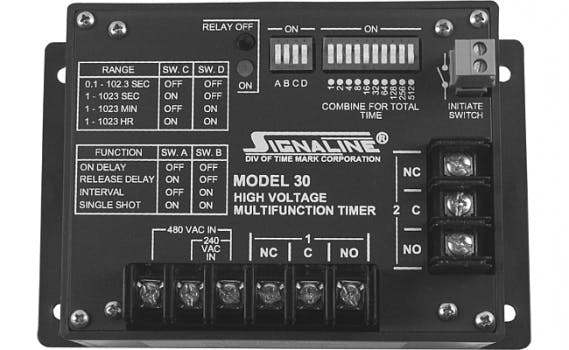

The Model 30 is a High Voltage Multifunction Timer.  Its digital design provides high accuracy, repeatability and response time. The output of the Model 30 is a heavy-duty DPDT electro-mechanical output relay.



Four DIP switches select one of four timing functions and four timing ranges:

FUNCTION

ON DELAY

RELEASE DELAY

INTERVAL

SINGLE SHOT

TIMING RANGE

0.1 - 102.3 SEC

1 - 1023 SEC

1 - 1023 MIN

1 - 1023 HR

Voltage

240/480VAC Single Phase

Power Consumption

3.7W

Frequency

50/60 Hz

Timing Ranges

0.1 – 102.3 Sec
1 – 1023 Sec
1 – 1023 Min
1 – 1023 Hr

Accuracy

± 2% of Time Delay Setting
± 0.025 Sec

Repeatability

± 0.1%

Reset Time

1 Sec for On Delay and Interval

Initiate Switch Input

5V Open Circuit / 500µa Short Circuit
(Use N.O. Dry Contact)

Contacts

DPDT

N.O. Contact Rating

10A, 600VAC General Purpose
1.5Hp, 480VAC or 600VAC
0.5A, 12VAC Minimum

N.C. Contact Rating

3A, 277VAC
2A, 480VAC
1A, 600VAC
0.1A, 12VAC Minimum

Mounting

Surface Mount
