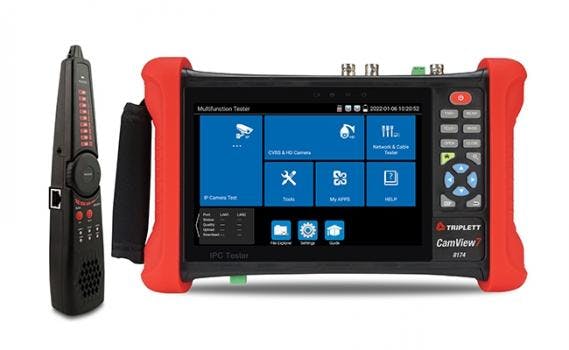

Triplett Model 8174 CamView Security Camera Tester
The Triplett Model 8174 CamView Security Camera Tester is ideal for CCTV system and network cabling project installation and maintenance. It has a 7 in. (17.8 cm) touchscreen with retina display, 1920 x 1200 resolution, and supports up to 1080p for testing HDMI input of monitors. It provides 8MP transport video interface, 8MP CVI, 8MP AHD, and CVBS camera testers with pan, tilt, and zoom control. Network testing options include ping, IP scan, port flash, DHCP server, and trace route.
It also features up to a 16-hour battery life and advanced capabilities like a built-in Wi-Fi analyzer with 2.4G signal strength tester and hot spot generator, dual 1000M LAN ports to check network bandwidth, packet loss or error data, and a 4x zoom, allowing users to enlarge an image, capture screen snapshots, screen record, save, view, record, and playback video.
- 7 in. (17.8 cm) Camera Tester with advanced capabilities and up to 16-hour battery life
- 8MP TVI, 8MP CVI, 8MP AHD, CVBS camera test with PTZ control
- H.265/H.264, 4K video display via mainstream
- HDMI input & output supports up to 1080p
- Network testing includes: Ping, IP scan, Port Flash, DHCP server, Trace Route
- Built-in Wi-Fi analyzer with 2.4G signal strength tester and hot spot generator; Chrome browser included
- Dual 1000M LAN ports, to check network bandwidth, packet loss or error data
- 4x Zoom to enlarge on screen image, screen snapshot, screen record, save, view, record, and playback video
- 24W, 48V DC PoE Power output / DC 12V 3A
- Includes network cable tester, 12V DC 2A Adaptor, 8GB SD Card, Polymer Lithium Ion Battery (7.6V DC 7800mAh), BNC, RS485, Audio, DC power cables, safety cord, and carrying case
