Multi-Cure 9452-FC Low Viscosity Conformal Coating

May 12, 2017
Multi-Cure 9452-FC conformal coating offers an effective, green alternative to solvent-based system.

Multi-Cure 9452-FC conformal coating is formulated with a revolutionary technology designed for rapid conformal coating of printed circuit boards and other electronic assemblies. With a viscosity of only 20 cP, this 100% solids material provides a more environmentally-friendly alternative to solvent-based systems.



Multi-Cure 9452-FC is designed for rapid conformal coating of printed circuit boards and other electronic assemblies. Typically, to achieve a very thin conformal coating, formulations are reduced using solvents. Until 9482-FC, light-cure coatings have been unsuccessful in providing the thinness and performance requirements needed.

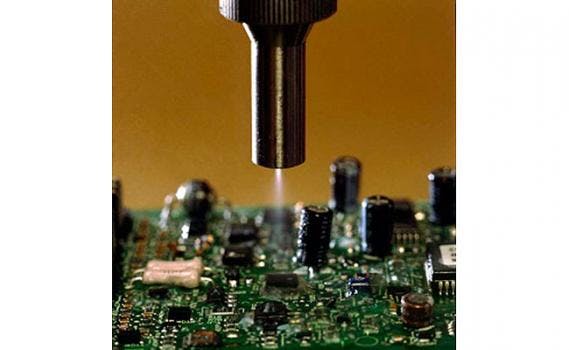

Compatible with most types of spray equipment, 9452-FC fluoresces vivid blue when exposed to UV light (365 nm) for easy inspection of the coating coverage. It is also suitable for film coating or flow coating applications. In addition, its secondary heat-cure feature allows the coating to cure with heat in applications where shadow areas exist. Another important feature of this very low viscosity material is its ability to be cured under LED light in addition to broad-spectrum light, giving users the option of curing systems for process optimization.

Viscosity (nominal)20 cPUncured appearanceClear to yellowFluorescesYes, blue
  • Fast cure with LED or UV/Visible light
  • LED optimized for 365, 385, 405 nm curing
  • Fluoresces blue under black lights
  • Multi-Cure - secondary heat cure for shadow areas
  • Flammability (V0 internal)
  • Excellent wettability
  • Very good thermal shock resistance
  • 100% solids
