Tapeswitch Corporation Launches The New PCU Programmable Safety Control Unit Offering Multiple Safety Product System Integration, Programmable Logic Control Functions, and Safety Software.
Tapeswitch Corporation released the NEW PCU programmable safety controller which integrates machine safety, multiple safety product systems integration, programmable logic control functions and software (included).
The PCU offers a fully integrated safety system solution that unifies the management of all safety products, such as safety switch mats, edges, bumpers, switches, non-contact interlocks, laser scanners, light curtains, two hand controls, photocells, emergency stops, hand grip switches, encoders and proximities etc. into one safety system solution.
The system software is capable of programmable logic control functions, such as fieldbus input/output, fieldbus probe output, 4 different types of muting, muting override, guard lock functions, memory operators, counter operations, timer operator, logical operators, and more and is downloadable from PC to the safety controller via a USB connection.

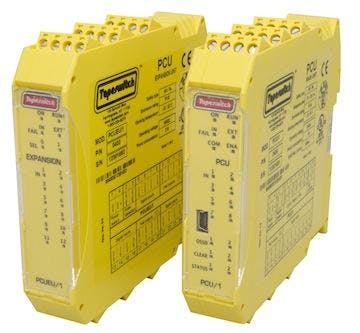

The NEW PCU SYSTEM is available in expandable configurations of the following components as applicable to the particular machine safety system requirements, which is centered around the main standalone unit, the PCU/1, configured from PC through a USB interface using the PSD software and the PCUEU/1 (for 12 input, 8 test output) expansion units for Tapeswitch Corporation 4-wire fail-safe safety device products.The system is further expandable via the proprietary PCI bus, depending on your full safety system solution needs. With 14 expansions, the system can have up to 128 inputs, 16 dual channel safety outputs and 16 status outputs. Furthermore 8 inputs and 16 outputs probe controllable (by Fieldbus) are available. The system has available expansion units for safety product integration requirements.- PCU8I2/1 I/O (for 8 inputs / 2 double OSSD), PCU8IE/1 (for 8 inputs), PCU16IE/1 (for 16 inputs) input expansion units
- PCU2E/1 (for 2 double OSSD) and PCU4E/1 (for 4 double OSSD) output expansion units
- PCU2SR/1 (for 2 relays) and PCU4SR/1 (4 relays) as safety (guided contact) relay modules
- The additional fieldbus integration expansion units for diagnostics and data communication, include The PCUBUS/1 (Profibus DP), PCUCI/1 (CANopen), PCUDNI/1 (DeviceNET), PCUECI/1 (Ethernet), PCUUSB/1 (USB) and accessory options, such as the PCUMCM/1 external configuration memory, PCUECI/1 connector for 5-way communication, PCUCUSBC/1 USB cable for connection to PC depending on your safety system solution requirements.
The PCU safety controller meets SIL 3 (IEC 61508), SIL CL 3 (EN 62061), PLe (ISO/EN 13849-1) and Category 4 (ISO/EN 13849-1) machine safety requirements and is CE, UL and cUL certified.
For PCU-1 Programmable Safety Control Unit product specifications, visit www.tapeswitch.com or call Tapeswitch Corporation direct at 1-800-234-8273.
