Flexible VNA Test Cables

May 12, 2017
Designed for Vector Network Analyzer, cables feature light cable armoring and a 1 mm connector interface.

Four new 1 mm flexible cables are designed to deliver precision results for Vector Network Analyzer (VNA) testing, semiconductor probe testing, automotive radar testing, and military radar testing. VNA test cables operate at up to 110 GHz and feature 50 Ohm impedance.

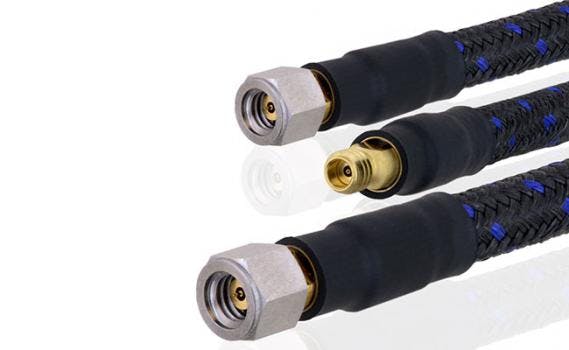

Pasternack's four new high-performance, flexible VNA test cables operate at up to 110 GHz and deliver precise results for testing using a coaxial cable and 1.0 mm stainless steel connector interfaces. The coaxial cable is covered by a non-conductive Nomex outer sleeve. This light-duty armoring protects the small, 0.27-inch diameter cable and improves stability during flexure. These cables feature 50 Ohm impedance, a maximum VSWR of 1.5:1 and excellent phase/amplitude stability under flexure.



Pasternack's 1.0 mm flexible VNA test cables operate over a wide range of temperatures from -65°C to +125°C. They are RoHS and REACH compliant. Each cable assembly is fully tested and comes with serialized test data. These cables are available in standard 6-inch and 12-inch lengths with male-to-male or male-to-female configurations.
