Environmental Protection for Electronics

June 9, 2017
EpoxySet's new compound cures at 100 degrees celsius

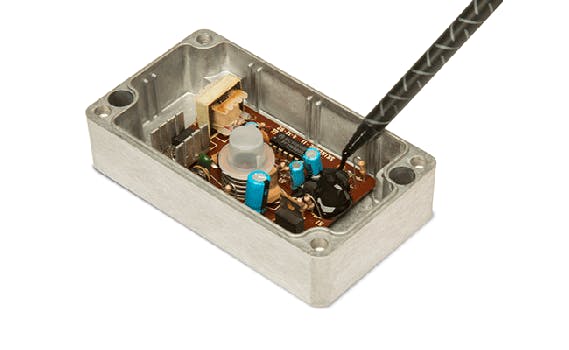

The UC-2524 is a flame resistant potting/casting material that is used for environmental protection of electronics. It yields a very low cure stress as well as high impact resistance over a temperature range of -55° to 130°C. With excellent electrical properties, this compound is a perfect choice for high voltage power supplies and ignition coils.



The UC-2524 has a 100°C cure and can be demolded in 20 minutes. Additionally, this compound has a minimum work time of 60 minutes with a 1:5 by volume mix ratio.

  • temperature range of -55º to 130ºC
  • cures at 100ºC
  • demolds in 20 minutes
  • minimum work time of 60 minutes
  • 1:5 volume mix ratio
  • low viscosity
