    Self-Centering ID Clamps for Precision Clamping

    March 3, 2015
    Self-Centering ID Clamps from Carr Lane Manufacturing simultaneously locate and clamp from the inside of an existing hole or slot in the part.
    Related To: Carr Lane Manufacturing
    6667249a74c1d40008e3b8a3 830 350

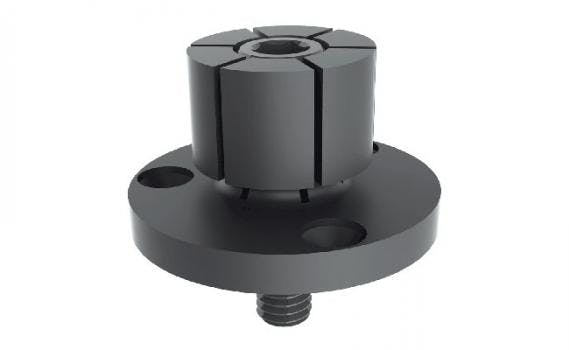

    Self-Centering ID Clamps simultaneously locate and clamp from the inside of an existing hole or slot in the part, leaving the entire outer surface clear for machining. Tightening the tapered center screw with a hex wrench pushes the clamping segments outward to securely hold the internal bore.



    Made in the USA and available in 7 sizes, ID Clamps allow access to 5 sides without any clamp interference for multiple-part machining on vertical and horizontal machining centers.

    ClampØ Before
     Machining  Ø Min. After
    MachiningØ
     Expansion  Recommended
    TorqueRadial
    Holding ForceCL-8-IDC0.5000.2600.0063.6 ft-lb.950 lb. (430 kg)CL-9-IDC0.5600.3700.00813 ft-lb.1,900 lb. (860 kg)CL-13-IDC0.8130.4400.01028 ft-lb.2,500 lb. (1,000 kg)CL-18-IDC1.1250.5800.01449 ft-lb.4,500 lb. (2,000 kg)CL-22-IDC1.3900.7100.017120 ft-lb.5,900 lb. (2,700 kg) CL-27-IDC 1.6880.9100.020224 ft-lb. 10,000 lb. (4,500 kg) CL-33-IDC2.0630.9100.025224 ft-lb.10,000 lb. (4,500 kg)
