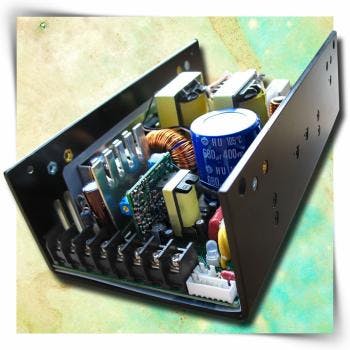

MPU-600S Series AC/DC power supply provides 600 w of output power in a compact U-Channel package. It feature a universal AC input, active power factor correction, full safety approvals, robust filtering, and compact construction.
Standard models operate from a universal input of 90 to 264 VAC, providing tightly regulated single outputs. which are set to 12, 24, or 48 VDC, but are available over a range of 2 to 60 VDC. Standard features include filtering to EN 55022 Class B, active power factor correction to EN 61000-3-2 D, peak output power to 900W, and an input/output isolation of 3,000 VAC. All models are protected for over load, over voltage, over temperature and short circuit faults.
This power supply is ideal solution for a wide variety of industrial power applications requiring high power density, robust performance, and economy.
- filtering to EN 55022 Class B, active power factor correction to EN 61000-3-2 D
- peak output power to 900W
- Input/output isolation of 3,000 VAC
- All models are protected for over load, over voltage, over temperature and short circuit faults
- N+1 current share feature may be used to connect up to four units
- MTBF (per MIL HDBK 217F) of the MPU-600S series is greater than 100 khours
