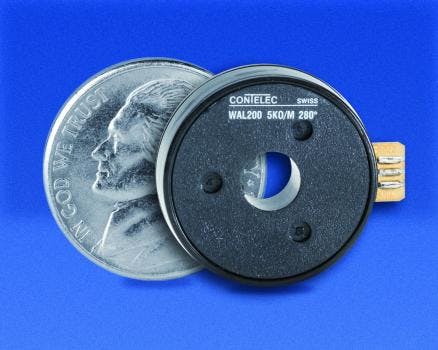

WAL 200 Series of hollow shaft angle sensors is a compact size, 7 x 22 mm, and provide absolute, rotary position. The measurement range is 0 to 340° and mechanical range a continuous 0 to 360°.
Even if power is removed, the absolute sensor will report the correct position when power is restored. The minimum life is 2 million mechanical movements, the resolution is less than 0.3°, repeatability is 0.3° and independent linearity of ±1 % of measurement range.
- Max Range: 280°
- Linearity: ±1%
- Life: 2 million movements
- Sealing: IP50
