Voice Coil Actuator (VCA) Developer’s Kit to include three new actuator sizes with greater force and stroke capabilities to provide a broader diversity in off-the-shelf selection (custom kits can also be ordered). The new additions round out the Kit selection to a total of six actuators with force performances now ranging from as low as 15.56 N to as high as 1,512 N, and total strokes ranging from 6.35mm to 31.7mm. Outside actuator diameters measure from an extremely compact 32 mm size to 113.8 mm for a wide choice of sizes.
the Kit can be used in a variety of industrial and commercial markets such as Medical, Laboratory, Automation, Military, Aerospace and Education.
- Force performances Range: 15.56 N to 1,512 N
- Total strokes ranging from 6.35mm to 31.7mm
- Kit part numbers: DK-LAS13-18, DK-LAS13-54, DK-LAS16-23, DK-LAS22-42, DK-LAS28-53, and DK-LAS43-88

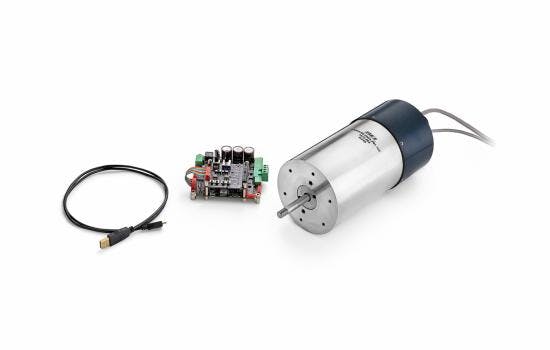

- Available in six configurations, each with a different VCA that is paired with the appropriate controller PCBA to drive the VCA being used
- Built-in feedback sensor and programmable controller with MotionLab Software runs on the user’s local PC
- Controller incorporates an Input/Output board that allows physical inputs and outputs such as push buttons (digital inputs), LEDs (digital outputs), and potentiometers (analog input)
- Sample programs for flow, motion, oscillation, timers, and memory are included.
