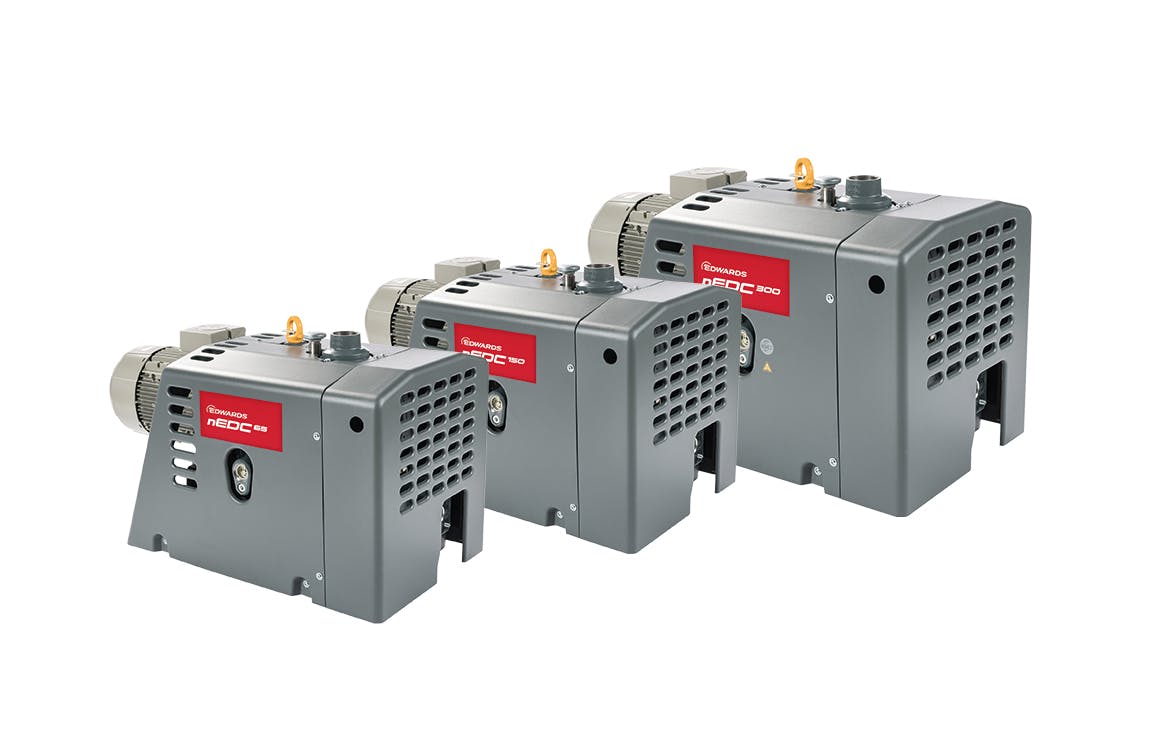

Low-Maintenance nEDC 65-150 Series of Dry Claw Vacuum Pumps
The nEDC 65-150 pump models are dry claw vacuum pumps for lower pumping speed classes. Easily handling contaminants, the smaller pumps are ideal for water & wastewater, thermoforming, vacuum conveying, food processing, and medical technology.
Features include an oil-free pump chamber and low-wear, corrosion-free internal components. The vacuum pump also has effective air cooling and compact housing for installation in tight spaces.
The inside of the pump is easily accessible to users for maintenance and repairs because the developers have separated the gear and pump chambers. This means that the claw pump can be easily cleaned by users themselves and then quickly put back into operation. No special tools are required.
The pump characteristics of the claw pump enable sustainable, profitable operation with low total operating costs. These pumps achieve higher process outputs as their motors are VSD compatible.
The temperatures inside the pump are comparatively low, extending the service life of the seals and preventing oil leaks. Furthermore, this results in long-term operation without the need for constant cleaning of the pump chamber. The integrated base silencer means that they take up less space and operate much more quietly.
Features:
- Modular design ensures efficiency during the operational lifecycle
- Lower internal temperatures increase lip seal life and prevent oil leaks
- Re-designed and in-house developed silencer significantly reduces noise levels.
- Can be easily cleaned on-site and re-started by customers without the need for specialized tools
Price: Contact company for pricing
Applications/Industries:
- Steam sterilization
- Plastic extrusion
- Woodworking
- Vacuum conveying
- Pick and place
- Water and sewage handling
- Printing and paper converting
- Medical systems
- Dairy industry for milking and milk transfer
- Thermoforming
- Waste removal
| Nominal Displacement | Ultimate Vacuum | Noise Level | Ambient Temp. | Motor Rating | |
| EDC65 50 Hz | 38 CFM (65 m3/h) |
37.5 Torr (50 mbar(a)) |
66 dB(A) | 32 to 104° (0 to 40°C) |
2.4 hp (1.8 kW) |
| EDC65 60 Hz | 46 CFM (78 m3/h) |
37.5 Torr (50 mbar(a)) |
66 dB(A) | 32 to 104° (0 to 40°C) |
2.9 hp (2.2 kW) |
| EDC150 50 Hz | 88 cfm (150 m3/h) |
37.5 Torr (50 mbar(a)) |
75 dB(A) | 32 to 104° (0 to 40°C) |
5 hp (3.7 kW) |
| EDC150 60 Hz | 106 cfm (180) m3/h |
37.5 Torr (50 mbar(a)) |
78 dB(A) | 32 to 104° (0 to 40°C) |
6 hp (3.7 kW) |
| nEDC300 50 Hz | 176 cfm (300 m3/h) |
105 Torr (140 mbar(a)) |
72 dB(A) | 32 to 104° (0 to 40°C) |
8.3 hp (6.2 kW) |
| nEDC300 60 Hz | 208 cfm (360 m3/h) |
105 Torr (140 mbar(a)) |
75 dB(A) | 32 to 104° (0 to 40°C) |
10 hp (7.5 kW) |
| EDC500 50 Hz | 294 cfm (500 m3/h) |
150 Torr (200 mbar(a)) |
76 dB(A) | 41 to 104°F (5 to 40°C) |
12.3 hp (9.2 kW) |
| EDC500 60 Hz | 353 cfm (600 m3/h) |
150 Torr (200 mbar(a)) |
78 dB(A) | 41 to 104°F (5 to 40°C) |
14.7 hp (11 kW) |
| EDC1000 50 Hz | 559 cfm (950 m3/h) |
150 Torr (200 mbar(a)) |
82 dB(A) | 41 to 104°F (5 to 40°C) |
24.8 hp (18.5 kW) |
| EDC1000 60 Hz | 671 cfm (1,140 m3/h) |
150 Torr (200 mbar(a)) |
85 dB(A) | 41 to 104°F (5 to 40°C) | 29.5 hp (22 kW) |
Edwards Vacuum
Sanborn, NY
(800) 848-9800
[email protected]
www.edwardsvacuum.com
