The EVERLAST Series 4000 Pump Station is an above-ground wastewater pump station that comes as a complete, factory-built and tested system that's fast and simple to install in both new installations and replacements of submersible pumps. It uses premium efficiency motors designed for wastewater for reduced energy consumption costs and a smaller carbon footprint.

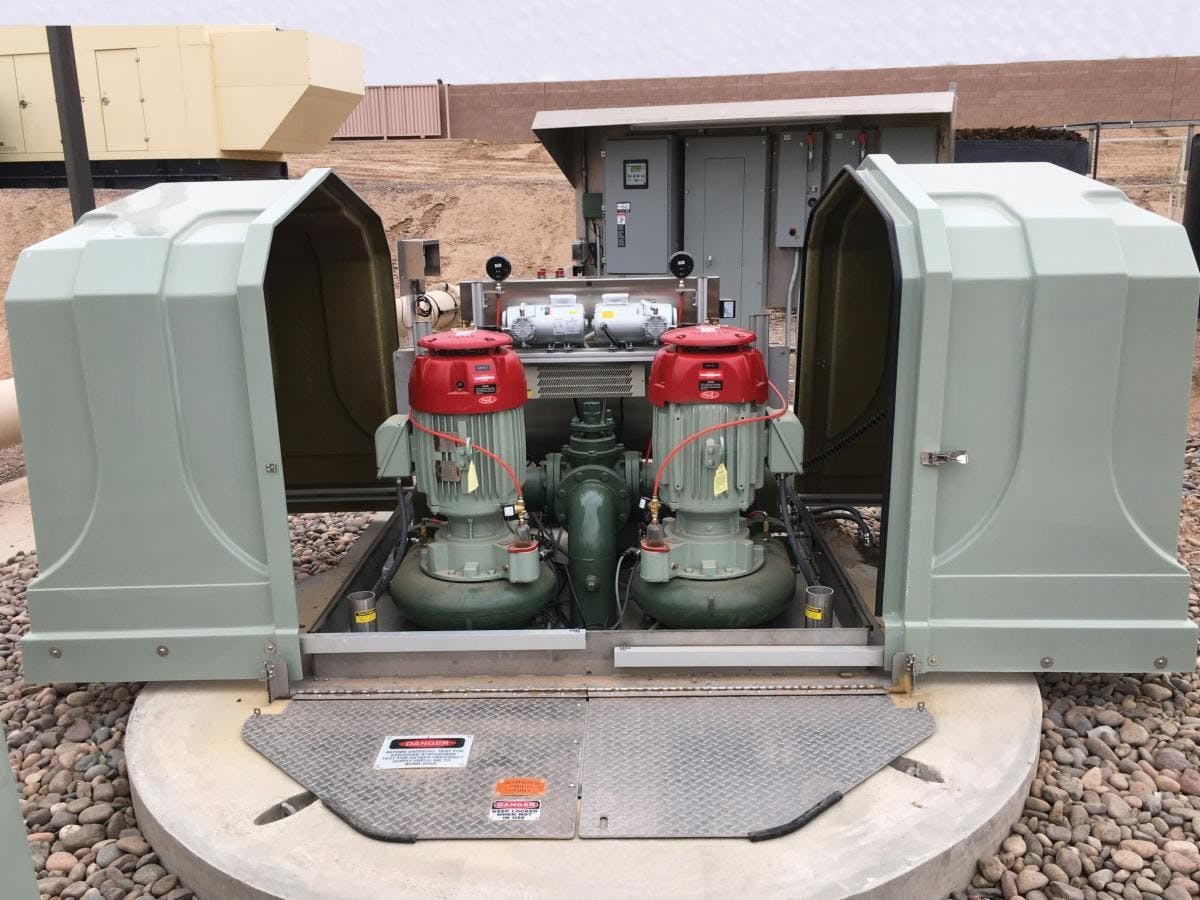

Unlike submersible pump stations, all mechanical equipment is safely located and easily accessible above ground and outside the wet well, eliminating confined space hazards during maintenance and operation. The EV Series 4000 features a 2-piece split, rolling UV-coated fiberglass enclosure that provides easy 360-deg. access to all components.
The EV Series 4000 pump station is equipped with S&L STAR ONE Non-Clog Pumps, which are centrifugal solids-handling pumps that last three to five times longer than a typical submersible pump. These pumps also offer higher efficiencies across the range of pumping conditions.
Features:
- Packaged pump station
- Sliding 2-piece enclosure
- 1/2 in. (12.5 mm) Baseplate
- QUICKSMART PLC controls
- 10-year warranty
- Graphical pump running indication
- Lead pump Indication
- General alarm Indication
- Alarm messages and logging for each function
- Digital indication of air temperature
- Digital and graphical indication of wet well level
- Graphical indication of prime or pump failure
- Digital indication of elapsed run time for each pump
- Digital indication of elapsed run time for parallel pump operation
- Digital indication of level control and alarm settings
- Heater/cooling fan running indication
- Wet well level simulation
- Force main/wet well cleaning
- Prime mode selection
- Vacuum release
- I/O status for the controller’s digital and analog inputs/outputs
| Flows | Up to 1,300 GPM (82 L/s) |
| TDH | Up to 158 ft (48 m) |
| Power | 1.5 to 50 hp (1 to 37 kW) |
| Pumps | 4 to 6 in. (100 to 150 mm) |
