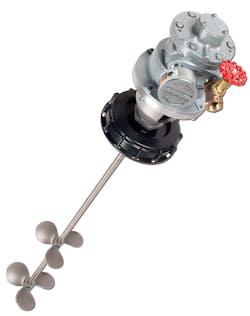

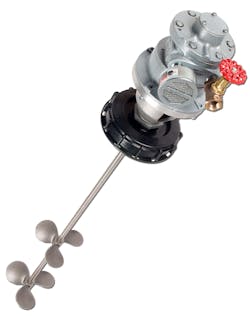

TL-series direct drive cap-mounted IBC tote mixers are ideal for mixing or suspending solids in intermediate bulk containers. Available with air or electric operation, from 0.75 to 4 hp, models are configured for vigorous agitation in low viscosities or medium agitation for heavier-bodied liquids.
Units include a shaft, 3-bladed machined square pitch style impeller, and a 6-in. screw cap for ease of installation. Air models are lightweight and variable speed with speed control valves. Electric models feature handles to easily install a mixer into a tote.
These mixers are ideal for a wide range of chemical mixing applications, including solvents and sanitizing solutions as well as paint processing or suspension of settled solids for bulk paint formulations in storage.
The totally enclosed, fan-cooled (TEFC) electric models are supplied with a cord, plug, and switch. Explosion-proof (EP) models include motor leads only and must be wired by the customer’s certified electrician.
| TL-13A | TL-11A | TL-4A | |
| Horsepower | 3/4 | 1-1/2 | 4 |
| Motor RPM | 300 to 3,000 | ||
| Motor Type | Air | ||
| Gast Model | 2AM-NRV-90 | 4AM-NRV-50C | 6AM-NRV-11A |
| Motor Frame | 56C Face | ||
| Motor Exterior | Painted | ||
| Rotation Top | Reversible | ||
| Air Requirements | 100 PSI @ 30 CFM | 100 PSI @ 70 CFM | 100 PSI @ 130 CFM |
| Air Inlet Size | 1/4 in. (6 mm) | 1/2 in. (13 mm) | |
| Impeller | |||
| Quantity | 2 | ||
| Diameter | 4 in. (102 mm) | 6 in. (152 mm) | 8 in. (203 mm) |
| Style | 3-Blade Square Pitch | ||
| Bore | 3/4 in. (19 mm) | ||
| Rotation | Left hand | ||
| Pitch | 1:1 | ||
| Material | 316L Stainless Steel | ||
| Set Screw | 1 | 2 | |
| Mount | |||
| Construction | Plastic | ||
| Features | 6 in. (152 mm) IBC Screw Cap | ||
| Shaft | |||
| Dimensions | 3/4 x 32 in. (19 x 813 mm) | 3/4 x 36 in. (19 x 914 mm) | |
| Construction | 316 Stainless Steel | ||
| General | |||
| Weight | 26 lb. (12 kg) | 30 lb. (14 kg) | 35 lb. (16 kg) |
| Warranty | 1 Year | ||
