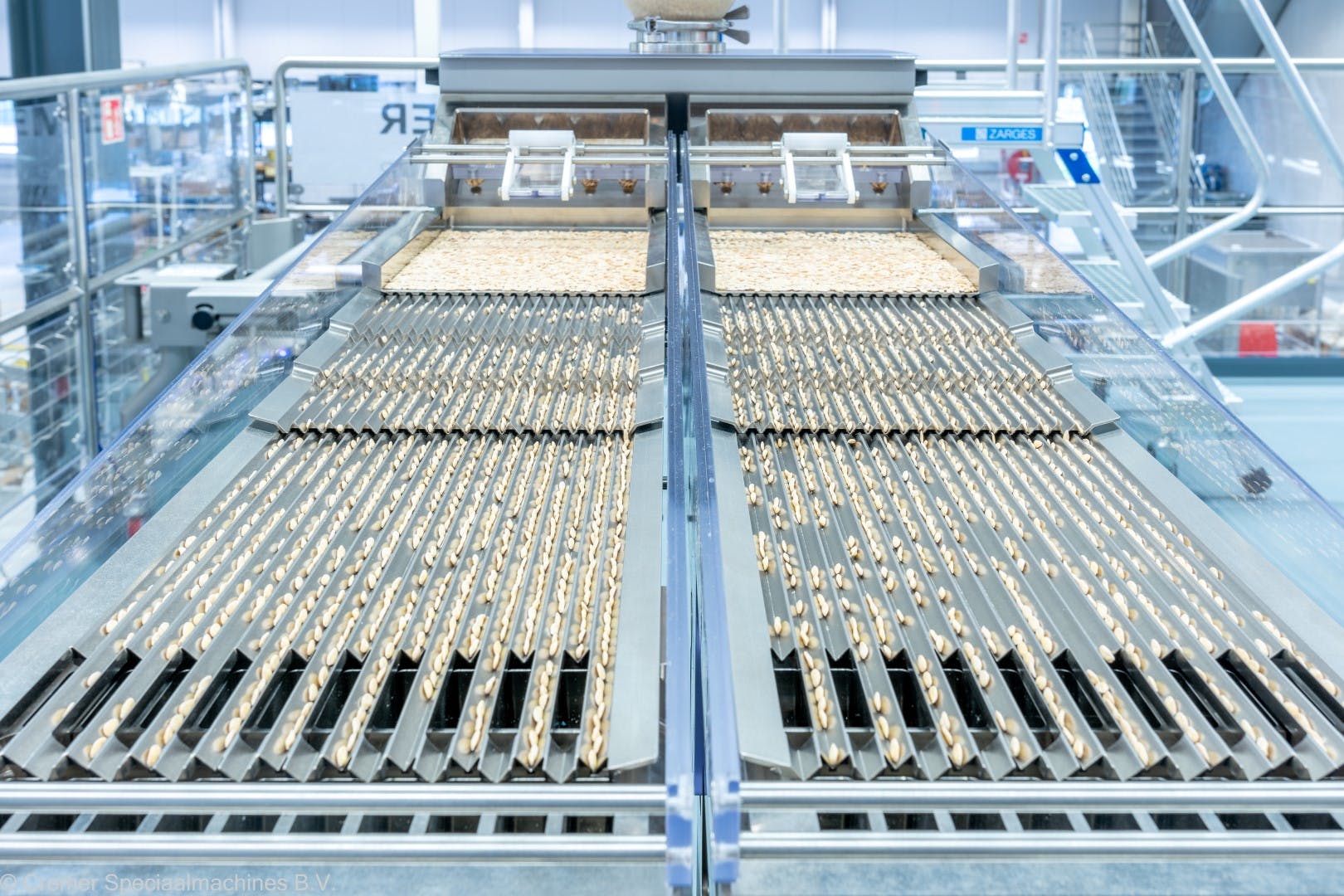

The CSC Series line of modular seed counting and dispensing machines offers a fast and reliable counting solution for crop and vegetable seeds of all sizes.
The compact and modular design makes it easily scalable for varying production levels. Up to 3 counting modules can be stacked next to each other without taking up more floor space. The CSC series is capable of counting and processing up to 37,500 seeds/min with 100% accuracy when equipped with 3 modules. With a single module, the system achieves minimum counting speeds of 12,500 seeds/min.
The 20-channel counter has a streamlined design with no dedicated product or format parts, allowing for easy changeover, cleaning, and low maintenance, eliminating the need for calibration and reducing the risk of contamination.
The series has been developed for high-speed dispensing of seed counts into any 3rd-party pouch filling or packaging machine. With its movable platform, it can be easily positioned above most industrial bag and pouch makers.
There are several smart control features including data entry with complete MES (manufacturing execution system) integration, as well as vision systems and barcode scanners to inspect bags for correct lot numbers and seed types. Other features include a sampling station for quality control, a vacuum conveyor for dust-free and loss-free seed transport, and a rotary filling nozzle for spill-free seed dispensing into a bagging machine and sampling station.
Features:
- Counting 12,500 seeds/min on a single counting module
- 100% counting accuracy
- Modular design for scalable performance
- Clean design
- Compact footprint
- Low maintenance, high reliability
- No format part changeover
- Fully customizable platform and configuration
| Counting Module Positions | 1, 2, or 3 |
| Number of Counting Channels | 20 |
| Max. Counting Speed | 12,500 seeds/min |
| Smallest Detectable Seed Size | 0.3 mm |
CSC Series Brochure
