Converting Passenger Aircraft to Freight Aircraft

The COVID-19 pandemic has disrupted supply chains around the world, paralyzed production lines, and caused major cities to go into lockdown. For more than a year, the economy has been in a state of emergency.

The airline industry has been hit particularly hard. Thousands of flights have been canceled, and in some cases, entire aircraft fleets have been parked and mothballed—COVID-19 has impacted air traffic globally to an unprecedented extent.

The measures to contain the virus are hitting not only passenger traffic but also airfreight (including airmail) because passenger aircraft transport a large proportion (around 50%) of airfreight.

Profiteers of the current crisis are cargo airlines/mixed carriers (freighters and PAX aircraft) and charter airlines, which will most likely look back on record results in these times. Driven by the air cargo boom and the growth of online commerce, the need to convert unused passenger aircraft into freighters is thus increasing.

This is described by the term "passenger to freighter" (P2F). Based on the current market, analysts expect growing demand in this area. In addition to opportunities for aircraft manufacturers, maintenance companies, airlines, and leasing companies will also benefit from the conversions.

Complex Aircraft Conversion

However, an aircraft conversion is technically very complex. It requires highly qualified technicians and a large number of parts whose processing must be coordinated to ensure a smooth process and timely completion.

Only a few years ago, many work steps were carried out manually, but today, even in the aircraft industry, more and more so-called MRO (Maintenance/Repair/Operation) processes are being automated. Reinforcing the floor structure of passenger aircraft to accommodate heavier payloads, for example, is one such labor-intensive process that involves drilling thousands of holes.

Here, the aerospace division of Singapore-based ST Engineering Aerospace Ltd—a specialist in aircraft conversion—relies on the support of a robotic cell. For this purpose, the company has been working with Helios Applied Systems, also based in Singapore, since 2019 to automate such elaborate processes.

Robot Partnership

The robotic cell drills dozens of holes in the floor grids of Boeing's 767-300ER aircraft at ST Engineering's plant near Paya Lebah to convert it into a freighter in accordance with Boeing's STC. To do this, the robotic cell moves along the floor structure, allowing the robot to drill the appropriate holes according to a predefined plan.

The cell is located in a hangar that is conveniently adjacent to the converted aircraft. The robotic cell consists of a hydraulically liftable moving platform, a Yaskawa robot with a 180-kilogram payload, an end-of-arm tool with a special image processing system developed by Helios, and a motor spindle with 6 kilowatts of power, as well as a hollow shank taper fixture for automatic tool changing.

A Spindle Makes the Difference

In addition to parameters such as concentricity and high speeds, the most important prerequisite for selecting the right spindle was the possibility of easily adapting the spindle to the existing robot by means of robot changing units.

Helios found what it was looking for with the automation specialist Zimmer Group from Rheinau in Germany. Zimmer Group supplied Helios with its HF145-001 series air-cooled spindle, which has a power rating of 6 kW and a maximum speed of 24,000 rpm, complete with EtherCAT operating terminal, all necessary cables, and the matched frequency converter.

This is particularly suitable for precise positioning tasks with integrated safety technology (STO) and for operations at low or high speed. In addition, the inverter offers optimum performance or power output with perfect coordination of spindle and frequency inverter.

In order to be more flexible for future applications, the spindle was mounted directly on a robot changing unit (WWS100F-001/WWWS100L-001)—also from the Zimmer Group. This robot changing unit allows the motor spindle to be exchanged for another tool or handling unit, thus enabling multiple uses of a robot.

In addition, Zimmer Group also supplied a storage station for the tool holder. The HSK fixtures and tools themselves were provided on-site by Helios. Helios uses the Zimmer spindle with a Fieldbus connection (EtherCAT) and also received the complete parameterization from the Rheinau-based automation expert.

The Zimmer Group also supports Helios during the installation and afterward with its extensive support for the products and also for software questions.

Successful Cooperation

"Due to the rigid design and the very smooth running of the spindle, even at higher speeds, the drilling result is very good. You have to keep in mind that these parts are light and not completely flat, so the vision system detects the position and angle of each hole," says Sunil Raibagi, project manager and vice president of business development and strategy at Zimmer Group.

The customer Helios is also satisfied: "We appreciate Zimmer Group as a long-term partner and are absolutely convinced of the qualities of the spindle. We were also particularly impressed with the service provided by Zimmer Group, who were always on hand to help us throughout the installation," says Managing Director Shyi-Herng Kan.

Busy in the Future

While the robot is currently focused on drilling floor grids, the ST Engineering team is working with Helios to program the machine so it can also be used to set countersunk rivets.

"We believe the robots can handle [these types of processes] well," said Hui Fung Lee, SVP and head of innovation and continuous improvement at ST Engineering Aerospace in an interview with cargo facts magazine.

In the coming months, the robot will also be programmed at ST Engineering to perform other functions and work on other aircraft models, including Airbus freighter conversions.

"We know that the P2F process is very complex and requires many people for the entire conversion process," Lee explains. "Therefore, we are constantly looking for ways to improve our productivity," Lee continues. Tasks that lend themselves to automation tend to be standardized and highly repetitive, Lee says. Starting next year, ST Engineering plans to automate the drilling of floor grilles for the A321-200P2F conversion programs it owns through EFW, a joint venture with Airbus.

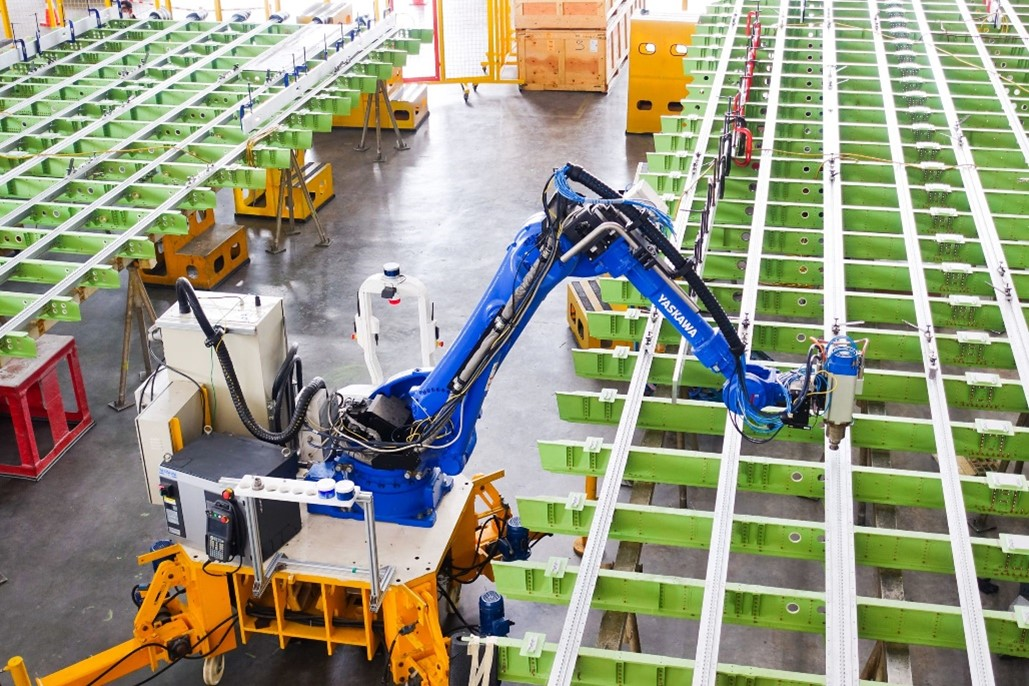

The Helios robotic cell including Zimmer Group's spindle drills dozens of holes in the floor grilles of Boeing's 767-300ER aircraft at the plant near Paya Lebah to convert it into a cargo plane.
