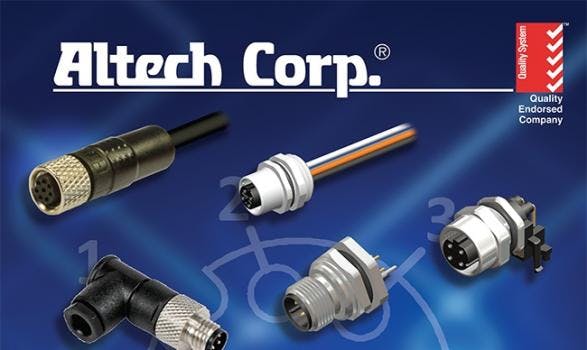

The Cx Family of sensor and actuator connectors and cables includes Altech's CB Series of molded sensor and actuator cables, CN Series field-wired connectors, and CP Series panel feed-through connectors.
Overall the Cx Family includes M8 and M12 connectors; cable assemblies and cord sets; bulkhead connectors; 3, 4, 5, 8, and 12-pole versions; male and female connectors; custom cable lengths; and PVC cables or PUR and TPE cables.
B-coded cables and connectors for Fieldbus applications: Profibus, CANbus, and DeviceNet as well as D and X-coded cables and connectors for Ethernet and high-speed 10GB connections are included in the Cx Family.
The CB Series specifically features female connectors to flying lead; straight and angled connectors; 3 and 4-pole connectors; and 1, 2, 5, and 10 m standard or custom cable lengths.
The CN Series features female and male versions; M8 and M12 choices; straight and angled connectors; M8: 3, 4-pole; M12: 4, 5, and 8-pole; screw or solder terminals; and A coding.
The CP Series features female and male versions; M8 and M12 choices; front and rear-mount connectors; M8: 3 and 4-pole; M12: 4, 5, 8, and 12-pole; custom cable lengths; and A Coding.
Readers can view a catalog with complete information of the Cx Series below.
