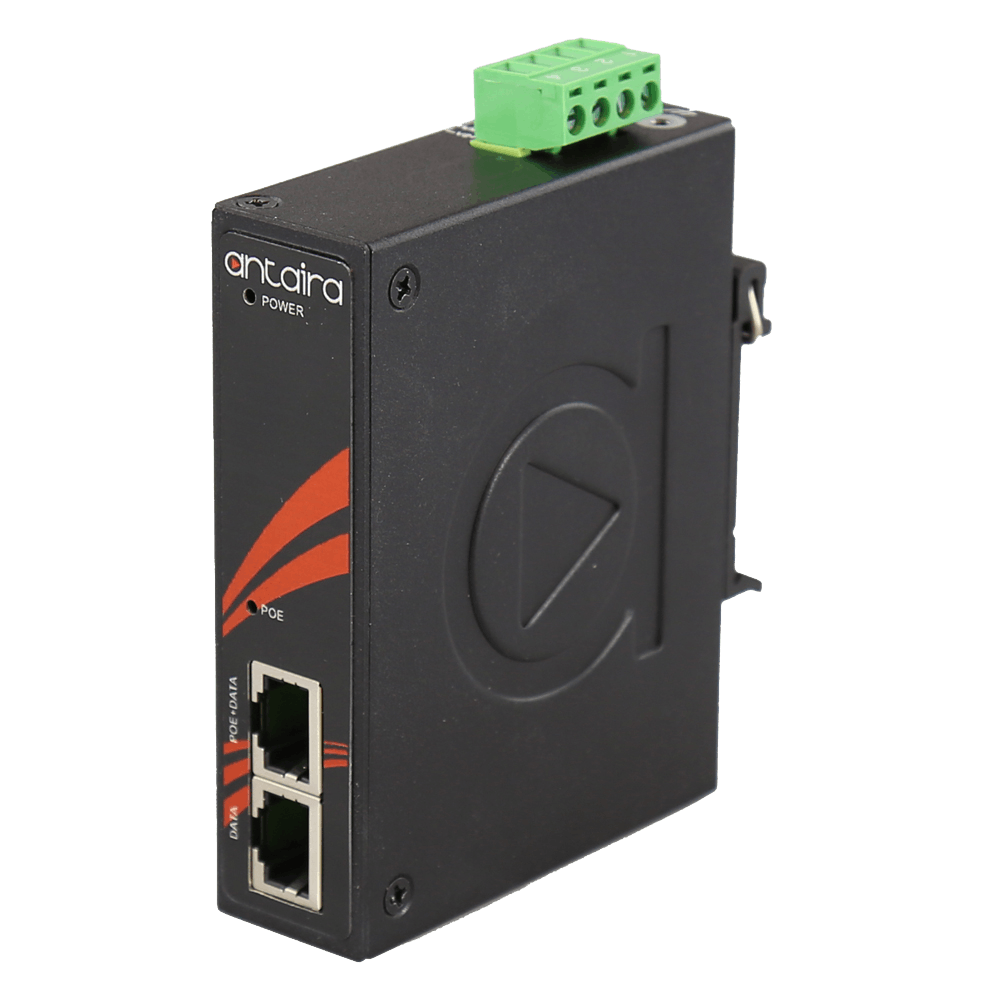

The INJ-C200G-PASS-T, an industrial-rated Gigabit Passive Power over Ethernet (PoE) injector, supplies up to 90 W of power to Passive PoE devices, such as cameras, IP phones, and WiFi access points, in a wide temperature range.
Its plug-and-play design brings instant PoE capability to non-PoE Ethernet switches. Able to be either DIN-rail or wall mounted, the highly versatile INJ-C200G-PASS-T supplies up to 90 W of PoE power through a 10/100/1000Tx Gigabit copper port.
Antaira housed the INJ-C200G-PASS-T in an IP30-rated metal enclosure, with support for an extended operating temperature range of -40 to 167°F (-40 to 75°C) and protection from overload current and reverse polarity. It's a safe choice for outdoor NEMA cabinets and industrial applications.
The INJ-C200G-PASS-T features a Power Input Range of 12 to 55V DC and a Power Output Range supporting between 12 to 55V DC Passive PoE. It has a 4-pin removable terminal block for 12 to 55V DC power input, permitting dual redundant power supply connections.
