Compression Mount PCB Connectors

July 6, 2021

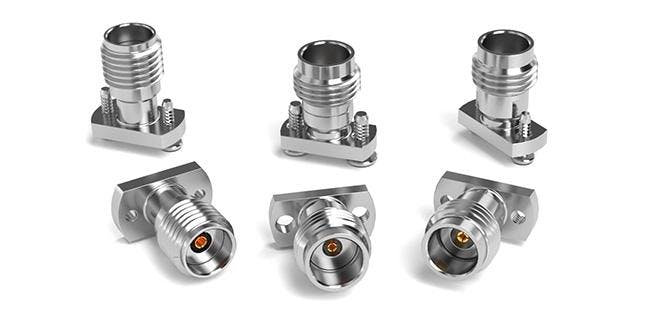

Compression mount PCB connectors for microwave applications up to 65 GHz allow for easy, field replaceable, cost-effective assembly to the board.



Connector interfaces include 1.35 (90), 1.85 (65), 2.40 (50), and 2.92 mm (40 GHz) with microstrip and stripline options available. Threaded coupling provides superior repeatability with high mechanical stability. Mating cable assemblies are also available.

1.35 mm:

  • Performance up to 90 GHz
  • Ideal for E-band applications
  • Robust mechanical design, high mating cycles
  • Cable assembly, cable connector, and board-level interconnects

1.85 mm:

  • Performance to 65 GHz
  • Available on RF047-A and RF086 cable assemblies
  • Compression, board-level interconnects for stripline or microstrip transmission
  • Cable connectors, compatible with industry-standard cables, also available

2.40 mm:

  • Performance up to 50 GHz
  • Available on RF23C, RF047-A, RF085, RF086 and RF120 cable assemblies
  • Compression, board-level interconnects for stripline or microstrip transmission

2.92 mm:

  • Performance up to 40 GHz
  • Compression mount jack with 2-hole flange in various board thicknesses
  • 23 AWG solid dielectric low loss microwave cable with additional copper shielding
