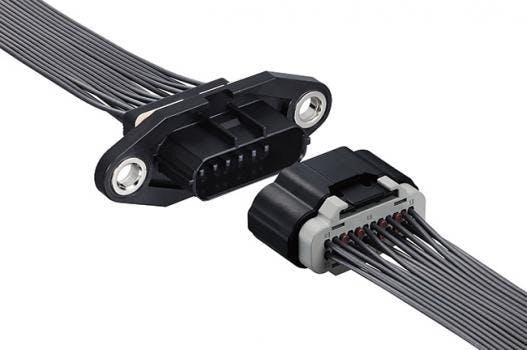

A low-profile, waterproof, wire-to-wire connector, the ZE064W Series, was developed for demanding automotive, agricultural, and construction vehicles. Rated to IP67 / IP69K, the 2.2 mm pitch ZE064W is resistant to temperatures up to 125°C.
A double-layer spring, three-point contact design ensures highly reliable connectivity in high vibration and shock conditions commonly found in off-highway and transportation applications. A contact retainer prevents incomplete mating and offers a pull force strength of 50N. Mating keys prevent mismating when using multiple connectors.
The ZE064W Series connector provides heat resistance performance up to 125°C producing stable contact resistance for up to 3,000 cycles, satisfying engine compartment heat resistance requirements.
Rated to 5A @250 VAC, the connector is designed for a wide range of automotive applications including automotive converter, inverter, battery, on-board charger, ECU, and more. In addition to vehicle applications, the ZE064W Series is popular in industrial equipment.
The ZE064W Series operates in the environments from -40 up to 125°C and has a rated voltage of 250V AC.
