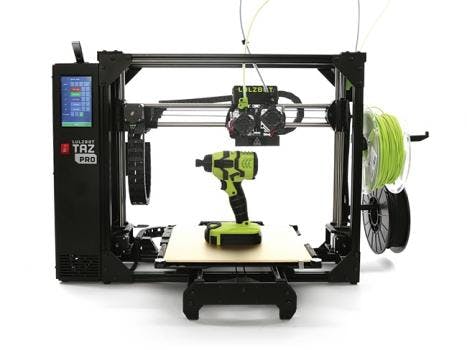

    LulzBot TAZ Pro is an industrial desktop 3D printer that provides large, multi-material, and soluble support printing with LulzBot’s award-winning reliability. Create large functional prototypes, manufacturing aids, and print-on-demand parts with easy, professional results.



    The TAZ Pro's multiple material capabilities go beyond competitive offerings which are usually limited to printing with the same material type in different colors, or the second material being only for soluble support. The TAZ Pro features independent vertical lifting E3D hot ends with 360-deg. part cooling, delivering clean transitions between material types with similar melting points. Durable and high-strength composite materials can be printed within the same part, as well as a wide range of materials with soluble supports for complex prints. Flexible materials with a Shore A hardness as low as 85A and industrial-grade polymers can also be printed in the same print.



    The hardened steel components of the TAZ Pro enable printing with engineered polymers or high-heat composites that are too abrasive for typical out-of-the-box desktop 3D printers. LulzBot 3D printers support the industry’s widest array of thermoplastics from leading premium filament manufacturers including flexible, rigid, composite, soluble, conductive, high-strength, and chemically-resistant materials.



    The Z-axis belt drive delivers fast cycle times for quicker throughput. The reduction of Z wobble through the belt drive and new X/Y/Z backlash compensation improves 3D printed part quality and accuracy. An increased size of 280 x 280 x 285 mm (11.02 x 11.02 x 11.22 in.) delivers a large print volume, while the dual filament run-out sensors alarm when a new filament reel is needed.



    Enhanced electronics provide for greater processing power and memory for complex parts, added functionality with improved visibility from a new 5-in. full-color touch screen, and quiet operation while sitting right on your desk. TAZ Pro’s automated X/Y/Z offset calibration, nozzle wiping, and self-leveling features ensure exceptional expedited results. Cura LulzBot Edition Software continues to include pre-configured print profiles, tested by Aleph Objects’ team of experts, for over 35 filament types.

    • Two active-lifting hot ends enable true multi-material 3D printing and complex parts.
    • Large 280 x 280 x 285 mm build volume with a heated build plate.
    • Automated X/Y/Z offset calibration, nozzle wiping, and self-leveling features.
    • Hardened steel E3D components enable printing of soft, flexible materials up to industrial-grade composites.
    • Dual filament runout sensors.
