7XC 3D Printer Targets Tooling Production

Sept. 10, 2021
The fused filament printer from RIZE was designed for the production of jigs, fixtures, and tooling, offering more sustainability and affordability.

When massive part size and industrial strength are needed for printing parts, jigs, tooling, and fixtures, the 7XC 3D printer delivers a time-to-part advantage and helps manufacturers assure they have agile supply chains to sustain them in the new normal.

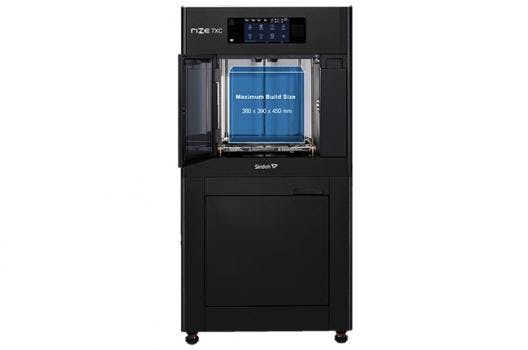

With a massive build size of up to 370 x 390 x 450 mm, the printer was developed jointly with Sindoh Co, Ltd. to leverage Sindoh’s 7X large-format dual-nozzle 3D printing platform and supported materials, along with RIZE’s RIZIUM composite materials. By enabling the rapid creation of large parts and complex geometries on demand, the 7XC provides an affordable way to generate parts with high tensile strength and thermal dimensional stability, along with chemical and moisture resistance.



Developed for printing anywhere without ventilation, it features a Z-resolution of 50 microns that enables complex geometries and superior surface finishes. Features such as active auto-leveling and internal insulation help assure enhanced mechanical properties while offering minimal post-processing with supports that peel away quickly and easily without chemicals or tools.

Build Volume14.6 x 15.4 x 17.7 in. (370 x 390 x 450 mm)
Dimensions34.0 x 31.9 x 66.5 in. (864 x 810 x 1,690 mm)
Print TechnologyFused filament fabrication (FFF)
Compatible Filament Diameter1,750 µm (1.75 mm)
Printer Weight (excluding cartridges)374.79 lb. (170 kg)
Power Input100 to 240V AC
Power Output350W
Properties
Layer Resolution50 to 400 ?m (0.05 to 0.4 mm)
DisplayColor touch screen
Nozzle Diameter400 µm (0.4 mm)
Operation
Operating Temperature61° to 84°F (16° to 29°C)
Build Plate LevelingAuto bed leveling
Ecosystem
Supported MaterialsRize: Rizium GF, Rizium Carbon, Rizium Support
Sindoh: PLA, ABS, Flexible, PVA
Connectivity and PortsUSB Flash Drive, Ethernet, WiFi, USB Cable
