    June 2, 2021
    Built like a tank, Zmorph's i500 is a large-format, industrial 3D printer with hassle-free, 24/7 operation for custom tooling and rapid prototyping.
    Related To: Zmorph
    66677c6cc40378000847abc5 830 350

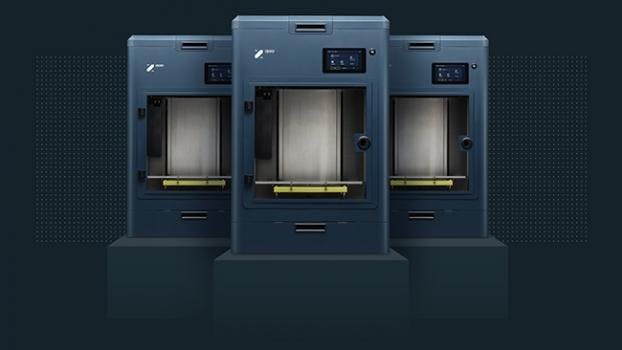

    Built like a tank, the Zmorph i500 is a large-format, industrial 3D printer with hassle-free, 24/7 operation for cost-effective and low-volume production, custom tooling, and rapid prototyping. It offers a big working area of 18 x 11 x 19.6 in., which allows it to print multiple parts at once or create big models, maximizing productivity. The dual drive, dual extruder works with various sensors to deliver repeatable, high-quality results.



    Zmorph i500 is easy to use: starting with an ergonomic touch panel with user-friendly UI to Filament Flow System, the operator simply starts the project and waits for the results. The machine sensors monitor if the material runs smoothly and if there are any obstacles.



    To maximize uptime and throughput, Zmorph i500 features a distributed control system that makes service easier and faster by creating access to each subassembly, while also maximizing the uptime of the machine. Features include an electric door lock for preventing unauthorized access, an airflow filtering system, and a removable Wi-Fi module.



    Zmorph i500 High-Performance 3D Printer is also available through resellers worldwide. Starts at $7,499 USD.

    Weight and Physical Dimensions

    3D printer703 x 507 x 1,075 mm3D printer weight~ 55 kg

    3D Printing Parameters

    3D printing technologyFFF (Fused Filament Fabrication)ToolheadsSingle material 1.75 mm, Dual material 1.75 mmLayer resolution0.05 to 0.4 mmMaximum printing temperature300°CWork area (single material)460 x 300 x 500[mmWork area (dual material)440 x 300 x 500 mmMaximum bed temperature130°CMaximum wall thickness0.4 mmDimensional accuracy+/- 0.2 mmWork area leveling methodSemi-automaticMaterial formSpool, maximum fi 300x100Material diameter1.75 mmNozzle diameter0.4, 0.6, (0,8 work in progress) mmSupportMechanically and chemically removed - printed with build or support materialConnectivityUSB (pendrive), Ethernet, WiFiAvailable MaterialsPLA, ABS, PET, Nylon, PVA, ASA, TPE, PC/ABS, HIPSThird-party materialsSupportedWork speed10 to 110 mm/sTravel speed350 mm/s

    Applications:

    • Automotive
    • R&D
    • Aerospace
    • Production and military industries
