Ball Valves Stand up to Extremes

Dec. 21, 2018

Hayward Flow Control announces the addition of its TB Series Ball Valve to its range of natural PVDF (Polyvinylidene Fluoride) products. With the TB Series available in PVDF, Hayward continues its expansion into higher temperature services, extreme corrosive and sensitive media systems.

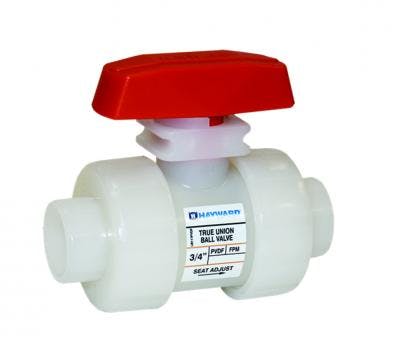

The PVDF TB Series Ball Valve features a true union design with threaded or IPS socket fusion end connections. The ball is molded from PVDF material. FPM seals are standard. Sizes include 1/4” through 1”. All sizes carry a pressure rating of 150psi / 10 bar Non-Shock at 70ºF / 23°C. Maximum service temperature is 240°F / 115°C.

  • Full Port Design
  • Reversible PTFE Seats
  • Double O-Ring Stem Seals
  • PVC Handle
  • Easily Actuated
  • Pneumatic and Electric Actuators
  • FPM O-Ring Seals Standard, EPDM upon Request
  • Easy to Maintain Design
  • Natural PVDF per ASTM D3222 Type 1
  • Backed by Hayward’s Exclusive 2 Year Warranty
  • Made in the U.S.A
