External Mix Narrow Angle Flat Fan Air Atomizing Nozzle

June 21, 2018

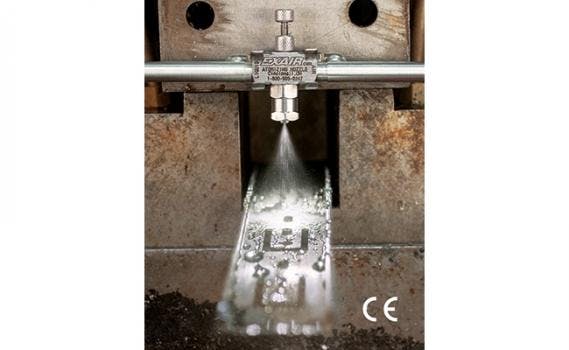

EXAIR'S external mix narrow-angle flat fan pattern nozzles are great where a high volume of liquid is needed over a concentrated area.

Part of the External Mix Ait Atomizing Spray Nozzles family, the 1/8, 1/4, and 1/2 FNPT external mix narrow-angle flat fan pattern nozzles are great where a high volume of liquid is needed over a concentrated area. Since they are external mix, airflow and liquid flow can be controlled independently.



The narrow-angle flat fan pattern nozzles are the best choice where thicker liquids for a heavy coating are needed over a narrow band, such as a paint line. These nozzles are ideal for pressure-fed applications with independent air and liquid control.



External mix nozzles are great where a high volume of liquid is needed. They can be used on liquids with a viscosity up to 800 cP (800 mPa-s).

  • Fully adjustable
  • Maximizes liquid dispersion
  • Minimizes liquid consumption
  • Type 303 stainless steel
  • Compact
  • Versatile
  • Interchangeable liquid and air caps
  • Minimizes air consumption
  • Fine atomization

Applications:

  • Washing
  • Rinsing
  • Coating
  • Cooling
  • Quenching
  • Wetting (moistening)
  • Humidification
  • Dust Control
